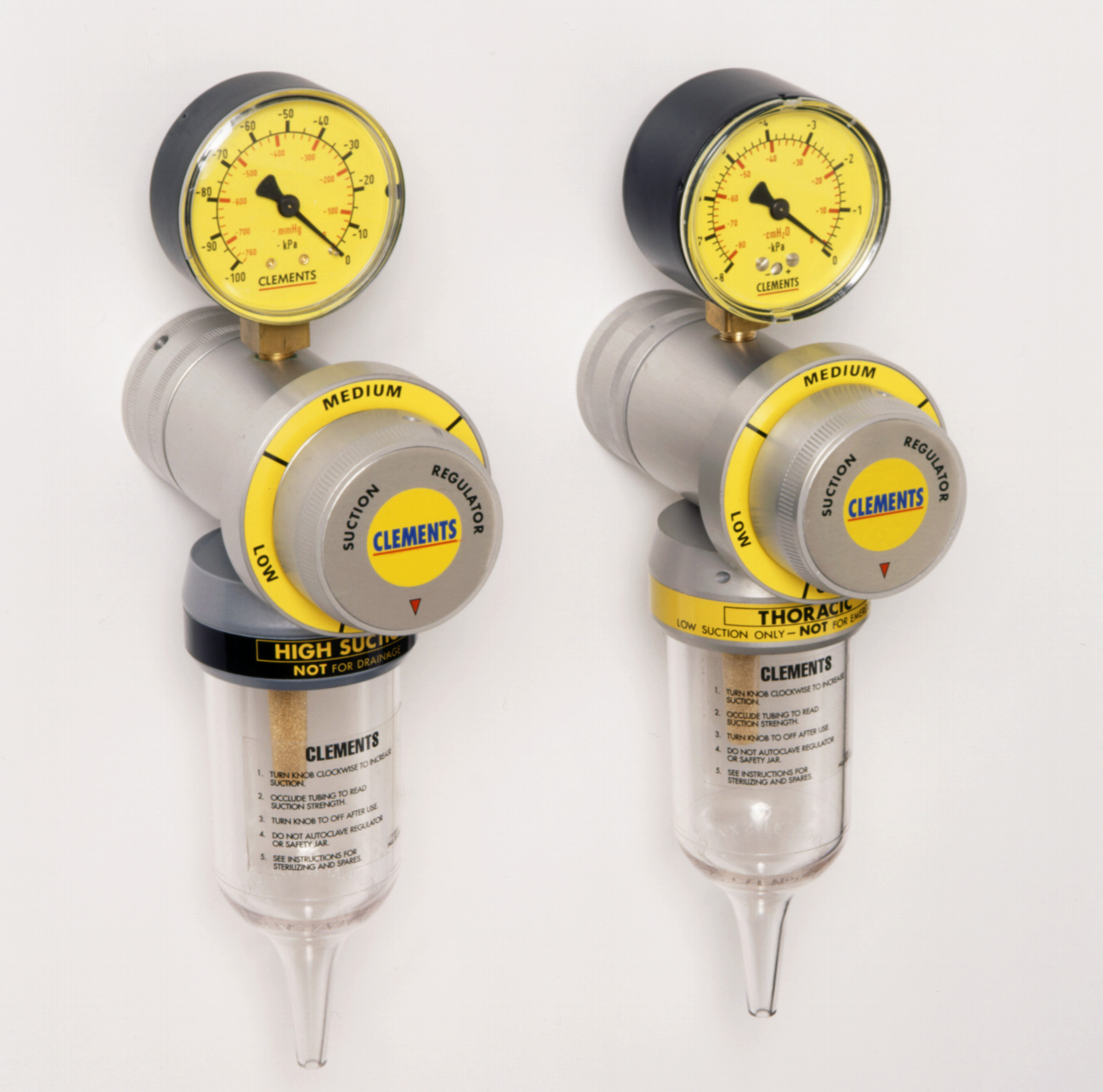

Clements Double Diaphragm Regulators

Clements Suction Regulators

Clements Suction Regulators provide precise vacuum control with unparalleled patient safety.

Vacuum is regulated with a unique double diaphragm, eliminating the risk of exposure to spikes in line pressure.

Designed and manufactured in Australia, and renowned for both durability and serviceability, Clements Double Diaphragm Regulators are the ultimate range of wall lsuction devices. Suitable for use from infants to adults.

Clements – Precision vacuum control

12 Month Warranty

Product: Clements – Double Diaphragm Suction Regulator

Part No: Various.  Review the Clements brochure, or contact Ecomed to determine your ordering requirements

  • Vacuum: 0 to -96 kPa [0 to -720 mmHg]
  • Flow Rate: 50 litre/minute
  • Gauge: Bourdon Tube Type, Dual Scale, graduated in kPa and mmHg
  • Gauge Range: 0 to -100 kPa, graduated at 5 kPa, 0 to -760 mmHg graduated at 20 mmHg
  • Regulator Mechanism: Frictionless Double Diaphragm Suspension
  • Filter: Porous Bronze Filter
  • Optional Collection Canister: Choice of MAK 300 (300 ml) canister with antibacterial filter or MAK 500 (500 ml) canister
  • Filter for Collection Canister: HEPA filter paper
  • Overflow Protection for Collection Canister: Float valve
  • Dimensions: Standard Regulator 273 mm H 70 mm W 130 mm D _ Regulator with MAK 300 375 mm H 70 mm W 130 mm D
  • Weight: Regulator 0.92 kg (1.23 kg packed)
  • Australian Standard: AS 2120.3
  • ARTG Number: 141742
  • Ambient Temperature: +5C to 35 C
  • Standard Conditions: 25C Sea Level -101 kPa
  • Available in High Vacuum High Flow, Medium Vacuum Low Flow (Baby), Medium Vacuum High Flow (Infant), Low Vacuum Low Flow, Very Low Vacuum High Flow (Thoracic). Available with Connector: Ring Index, V Mount.
  • SUC 89140 085 MAK 300 antibacterial canister with lid
  • SUC 89310 Porous bronze filter
  • SUC 89240 081 MAK 500 canister with lid
  • SUC 89140 036 Overhaul kit for regulators
  • SUC 89140 087 Adapter for attaching MAK canisters to regulators
  • SUC 89210 Safety trap for regulators
  • SUC 89240 088 MAK 300 jar only
  • SUC 89240 090 HEPA bacterial filters (Pack of 20)
  • SUC 89240 084 MAK 500 jar only
  • SUC 89104 Drager Connector Kit
  • SUC 89101 BS Mk IV Connector Kit
  • SUC 89102 Puritan Bennett Connector Kit
