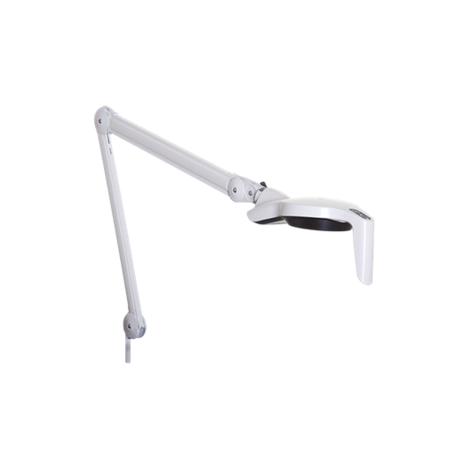

Luxo LHH LED – New generation
The new LHH is a natural development of our original medical examination luminaire, which is in daily use by medical professionals all over the world.
It is the highly flexible self-balancing arm in conjunction with excellent light output that has given our LHH diagnostic luminaires their vast popularity among the medical profession. The frictionless horizontal and vertical movement and the ease of use make the LHH the most flexible examination luminaire on the market – and the best in its class. The use of modern LED light sources has made it possible to reduce the size of the new lamp head, compared with the original. The reduced size provides for even better viewing conditions.

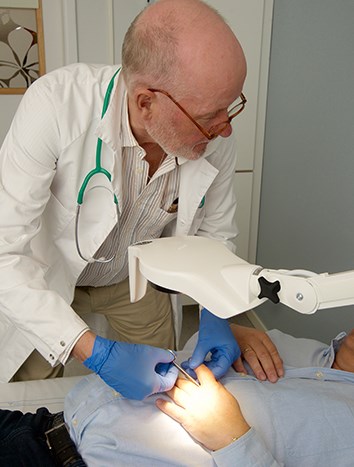

For demanding viewing conditions
LHH is designed especially for demanding viewing conditions that require exceptionally good light such as medical examination and minor procedures. It has widespread applications throughout the health sector, in hospitals, health centers and consulting rooms.

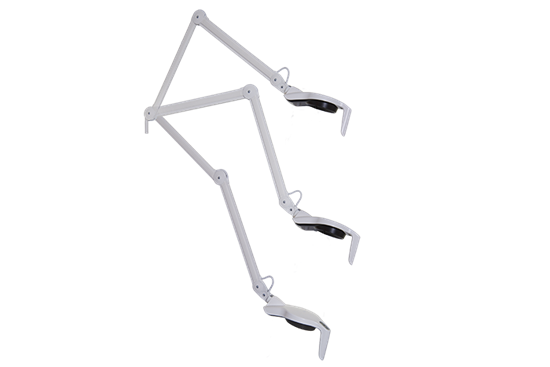

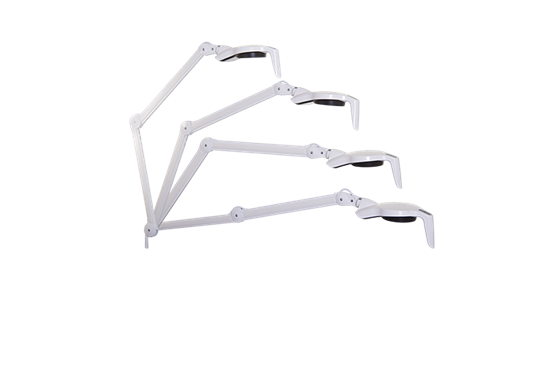

Exact positioning
LHH has a covered spring balanced arm for easy cleaning and safe and easy positioning. The flexibility and precision of the spring balanced arm means that LHH can be positioned exactly where the light is required. The light sources are positioned well inside the lamp head, in order to avoid glare. The direction of the handle indicates the direction of the beam. LHH is fully dimmable.
All-metal construction
LHH is made of powder-coated metal, such as aluminium and steel. The light source is covered with tempered glass.

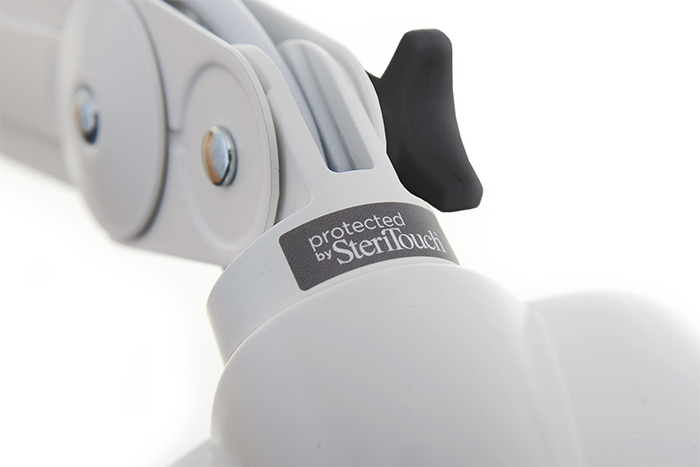

Protected by SteriTouch®
LHH is painted with SteriTouch® antimicrobial powder coating, which prevents the growth of bacteria, biofilm and mould. Based on ionic silver technology, the antimicrobial performance remains continuously effective throughout the product’s lifetime.
Easy replacement
The new LHH features the same arm construction and spigot as the traditional version. This means that all brackets and clamps can be reused with this new version.
Approved medical device
LHH is approved as a medical device according to IEC/EN 60601-1 Medical electrical equipment – Part 1: General requirements for basic safety and essential performance and IEC/EN 60601-1-2 Electromagnetic compatibility – requirements and tests.
Available with adjustable colour temperature
A version of LHH with adjustable colour temperature is available. This makes it possible to switch between warm white and cool white light, depending on the task at hand. The warm white setting is ideal for dermatological examinations, while the cool white setting is ideal for the recognition of blood vessels.

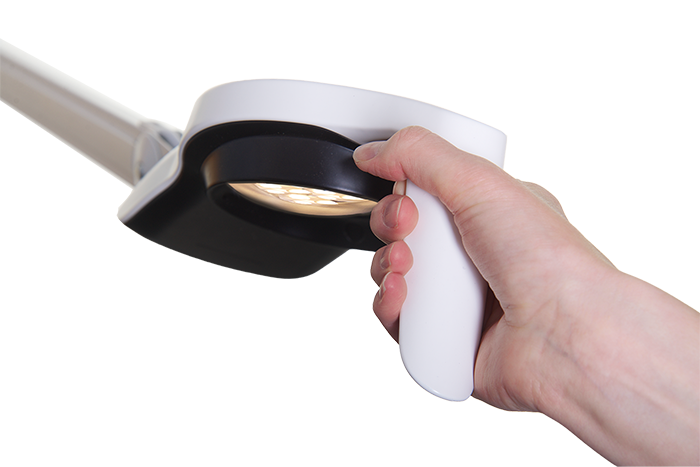

LED – light source of the future
Light emitting diodes are not only small and robust. LHH’s LEDs are extremely energy efficient, and have an incredible life span of 50 000 hours or more. The powerful LED module has an excellent light output giving more than 24 000 lux @ 1 metre.
Excellent light output
The powerful LED module has an excellent light output giving more than 24 000 lux @ 1 metre.
Protected by SteriTouch®
LHH is painted with SteriTouch® antimicrobial powder coating, which prevents the growth of bacteria, biofilm and mould.

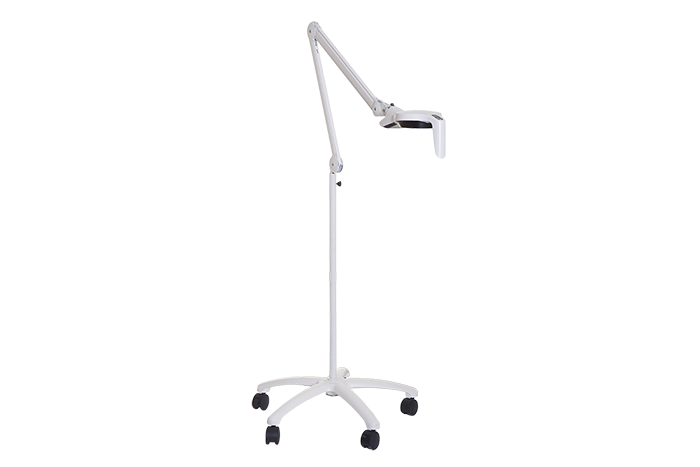

Trolley stand
LHH can be mounted on a trolley and easily moved around.

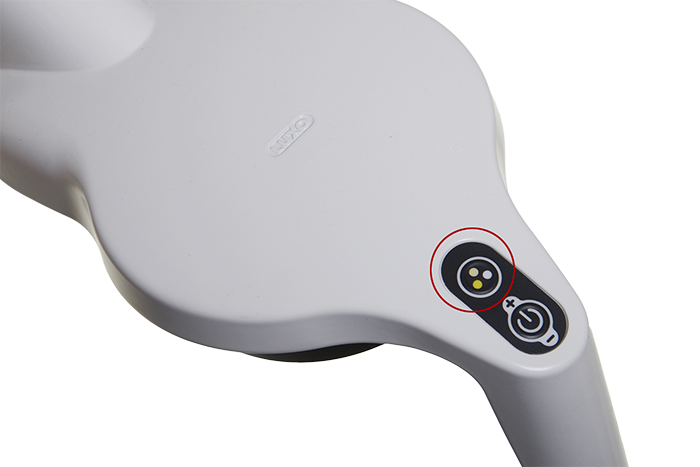

Adjustable colour temperature
A version of LHH with adjustable colour temperature is available.
Product: LHH LED – New generation
Light source
CRI is 95 (CRI on R9: 98)
CCT version:
Approx. 25,000lux at 1m and 65,000lux at 0.5. 3500/4000/4500K. D10 is 300mm on 1m, 160mm on 50cm.
Body material & colour
Steel arm with plastic covers. Aluminium shade. Colour: White with black details.

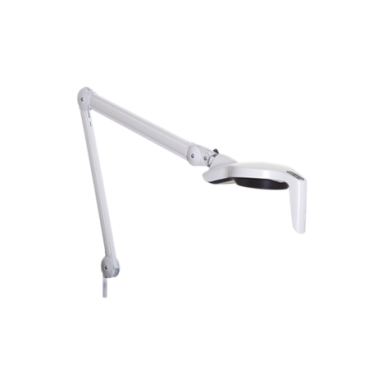

Mounting
LHH can be mounted on ceiling, wall, table or trolley. Various table clamps, integrated table mount, wall mount, ceiling mount and trolley are available as accessories on request.
Optimum Mounting Height
Ceiling: 2.7m
Wall: 1.4m – 1.6m
Power supply
Delivered with cable and plug.
Wall and ceiling – 1.7m.
Table / trolley version – 3.2m
Arm technology & movement
Parallel, three-pivot arm for Wall (W), Table (T) or Ceiling (C). Special version for Trolley is marked “TR”.
Arm lengths are 105 cm or 115 cm.
On/Off and dim.
Watch-light: Starts at minimum light level.
CCT: Step 3500/4000/4500K
UL 60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2.
- LHH is available for wall, ceiling or table/trolley mounting. We offer a wide selection of specialized brackets for all mounting purposes. Please refer to our web site and make sure to order the correct option for your application.

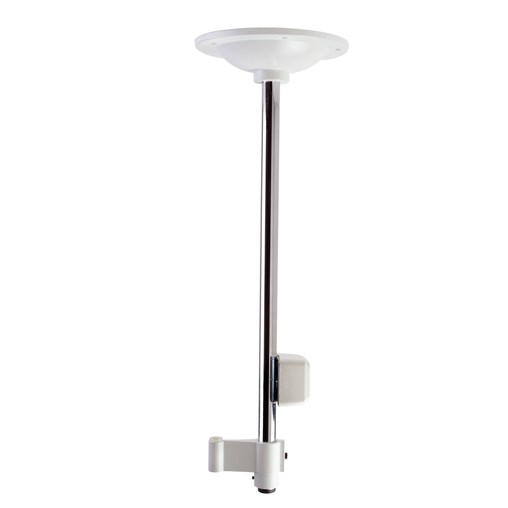

- BRK02531 Ceil.mount140cm/w/o cont-White
- BRK02529 Ceil.mount100cm/w/o cont-White
- BRK02530 LHH Ceiling Mount 60cm. Ceiling mounting bracket 60cm. Suitable for ceiling fixing point of 2.7m above floor (wall/ceiling arm option only).
- BRK025205 Mobile Trolley White
- BRK017516 Wall bracket. BSP extra heavy duty wall mounting bracket with a 130 mm square fixing plate with arm locking devise (wall/ceiling arm option only).
- SPA025674 Extra trolley weight
