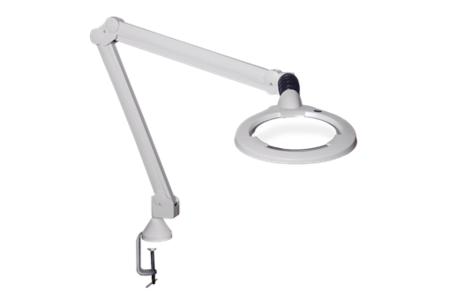

Luxo Circus LED
Circus LED is well suited for demanding work in beauty parlours, clinics and laboratories, for industrial purposes and as a tool for people with impaired vision. Circus LED has a large lens, aluminium head and a highly flexible self-balancing arm and shade neck. The large lens permits comfortable viewing with both eyes.
This excellent magnifier’s light source is a circular LED module with good colour rendering. A circular light source is the ideal way of illuminating an object, virtually eliminating shadows.
Medical version
A version of Circus LED is medical approved (M): IEC 60601-1, IEC 60601-1-2.
Exact positioning
Circus LED has a highly flexible shade neck. The shade neck can be positioned horizontally, vertically and laterally making the luminaire very flexible for most examinations. The fully covered spring balanced arm makes it easy to position the luminaire in the correct position and makes cleaning easy.
Standard version with 3.5 or 5 diopter lens and table edge clamp. For additional magnification a secondary suction lens of 4, 6 or 10 diopters can be attached to the glass lens.
Arm and body colour: White, with black details.
Choice of colour temperature

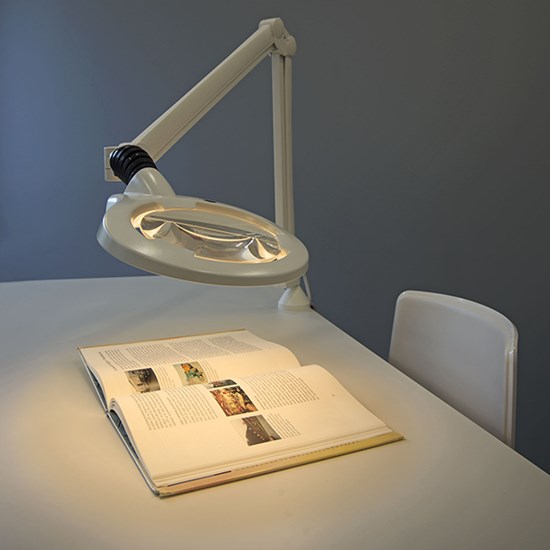

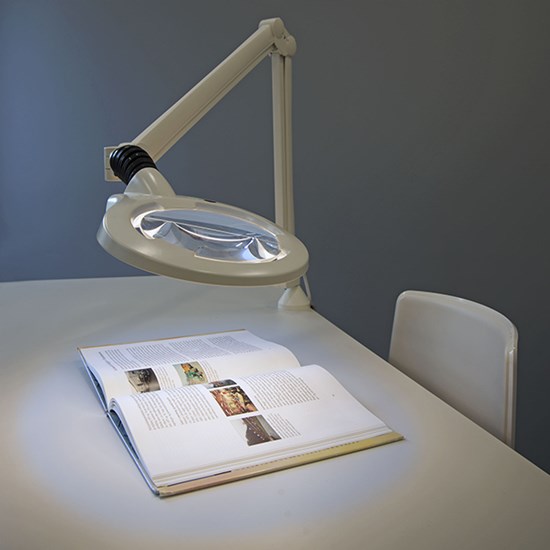

Circus LED is available with a choice of colour temperature – 3000 (warm white) or 4000 (cool white) kelvin. This is particularly useful for certain low vision applications. It is recommended to use a warm white light for visual impairments caused by cloudy ocular media (cornea, lens and vitreous disorders) and by metabolite disorders (retinitis etc.), while visually impaired people with certain macular conditions such as dystrophies and AMD require significantly more light and will benefit from the higher proportion of blue waves in the cool white light from Circus LED 4000.
A recent study concludes that people’s reading capability improves when using a magnifier with their preferred colour temperature.
About magnification
Follow this link to read more about the principles of magnification, and how a Luxo magnifier can make a difference for people in many different fields of life.
- Luxo illuminiated magnifiers
Circus LED is equipped with a 165 mm optical quality glass lens.
Circus LED has a highly flexible shade neck.
A circular light source is the ideal way of illuminating an object.
For additional magnification a secondary suction lens can be attached to the glass lens.
Light source
LED: 750lm out (4000K)
CCT: 3000 or 4000K. Colour rendering index (CRI) is 90.
The LED modules are dimmable, 10–100%.
Body material & colour
Steel arm with aluminium head. Shade neck cover in rubber. Colours: white arm and white head, plastic parts on the shade in black. White plastic covers on the arm.
Mounting

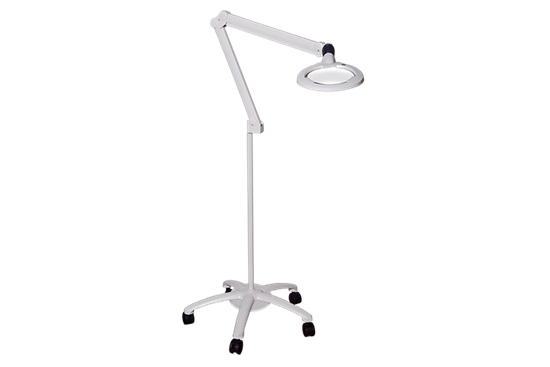

Standard with table clamp (AH clamp). Other table clamps, integrated table mounts and trolley are available on request.
Optic

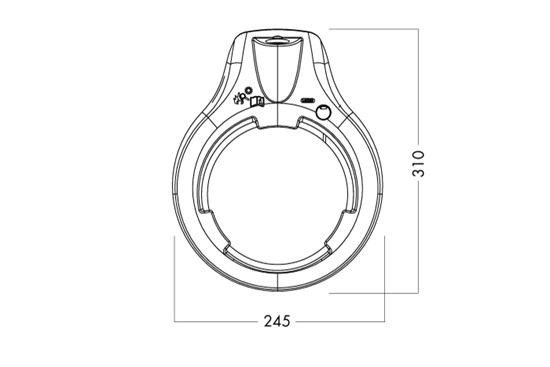

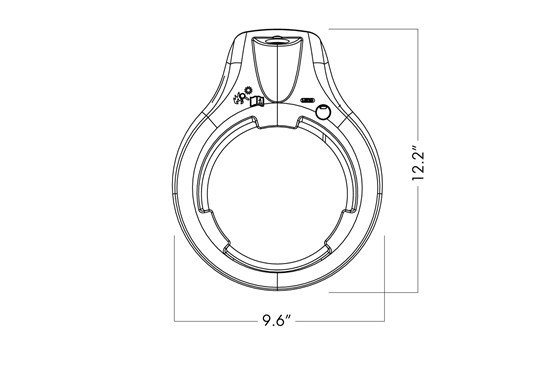

Standard with 3.5D or 5D crown glass lens. Lens diameter is 165 mm.
For additional magnification a secondary lens, 4D, 6D or 10D can be attached to the magnifier.
Arm technology & movement

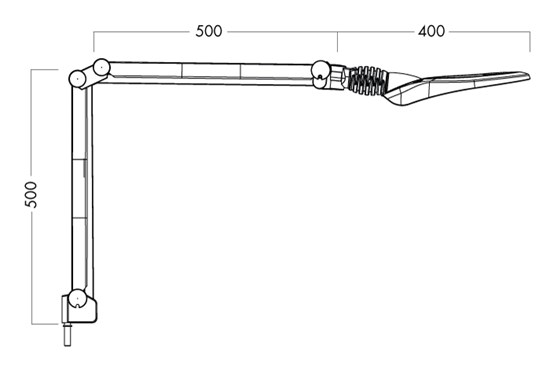

Parallel, three-pivot arm. Arm length is 100 cm.
A version of Circus LED is medical approved: IEC 60601-1, IEC 60601-1-2.
