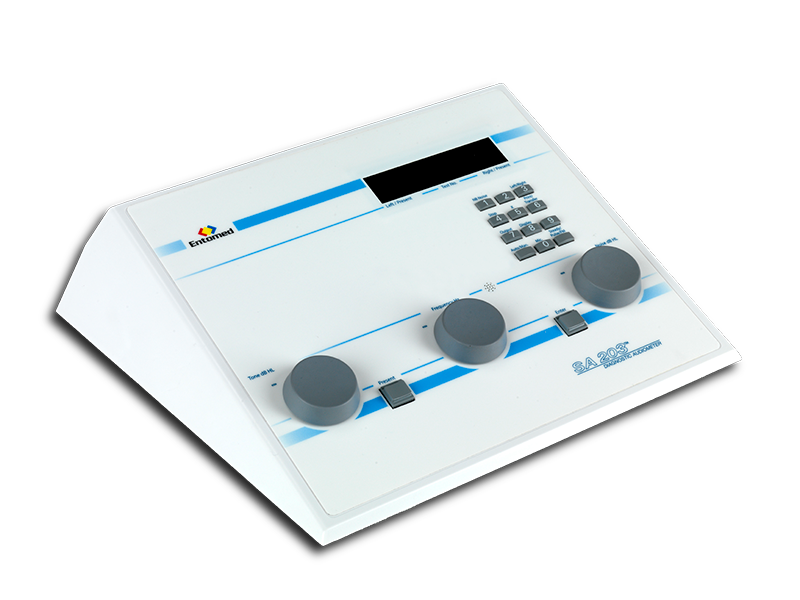

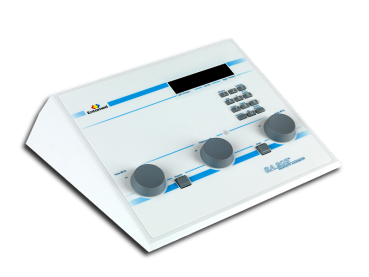

Entomed SA203
SA 203 is a manual/automatic pure-tone and bone conduction diagnostic audiometer with narrow band masking possibilities. The SA 203 has a set-up menu, which allows the audiometer to be programmed according to individual needs. 50 audiograms together with date, time and personal identification can be stored in the internal memory. Each audiogram can be displayed, transferred to a computer and/or external printer at any time. Built-in microphone for convenient communication with the test subject. Free field speaker system is optional. SA 203 calibrates to TDH39/DD45/HDA200 earphones, ER-5A insert earphones and Radioear B71 bone vibrator.
Singal Format
- Single pulse (1.3 sec duration)
- Continuous pure-tone when button is maintained active
- Pulsing (2.5 pulse/sec)
- Frequency modulation (± 5 %)
Special Capabilities
- Built-in talk forward microphone with volume control
- Internal memory – stores up to 50 complete audiograms in nonvolatile memory
- Synchronized Masking – The level of masking will automatically
- track with the stimulus level
- Hard copy print-outs to any PCL 5 printer, via optional SA 07
- printer interface cable
- Computer interface, via optional RS 232 computer cable
- RS 232 interface
- Transfer possibility
Dimensions
- Dimensions
- Width* Height* Depth: 376* 73* 264 (mm)
- Weight: 1.5 kg
- Power supply: 110 V – 240 V, 50 – 60 Hz
