Entomed SA202

Entomed-SA-202-IV-(1)

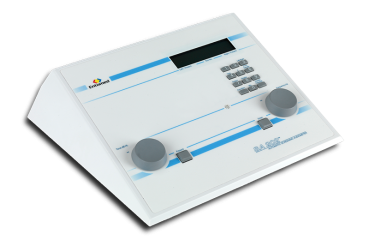

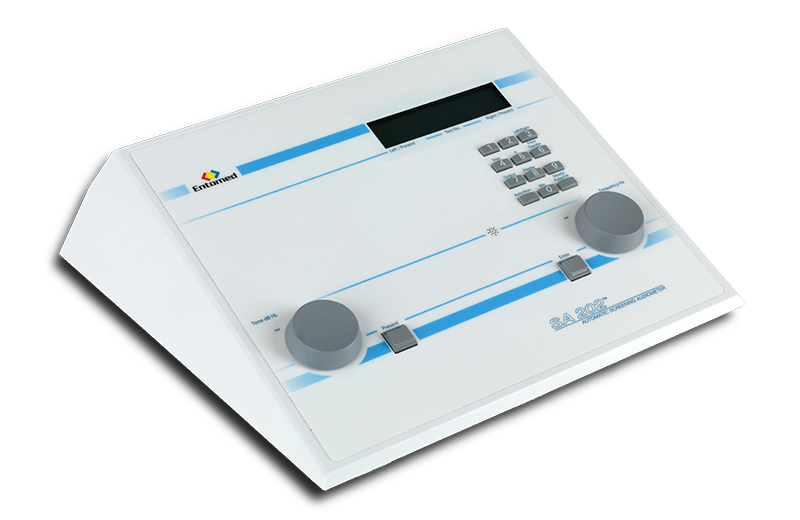

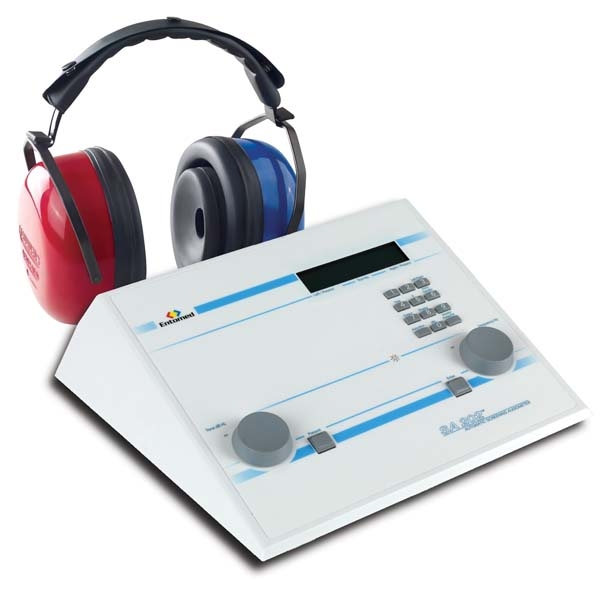

SA 202 is a manual/automatic pure-tone screening audiometer. It has a set-up menu, which allows the audiometer to be programmed according to individual needs.

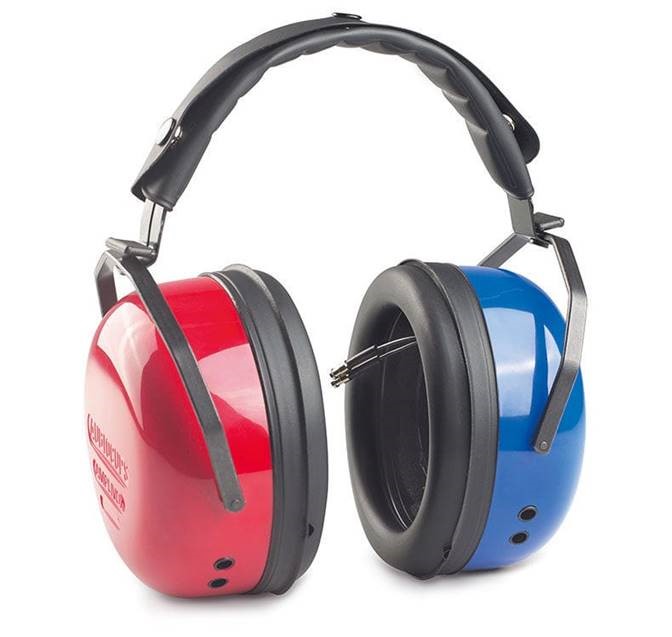

50 audiograms with date, time and personal identification can be stored in the internal memory. Each audiogram can be displayed, transferred to a computer and/or external printer at any time. Built-in talk forward microphone for convenient communication with the test subject. SA 202 calibrates to TDH39/DD45/HDA200 earphones and ER-5A insert earphones.

Signal Format

  • Single pulse (1.3 sec duration)
  • Continuous pure-tone when button is maintained active
  • Pulsing (2.5 pulse/sec)
  • Frequency modulation (± 5 %)

Special Capabilities

  • Built-in talk forward microphone with volume control
  • Internal memory – stores up to 50 complete audiograms in nonvolatile memory
  • Hard copy print-outs to any PCL 5 printer, via optional SA 07
  • printer interface cable
  • Computer interface, via optional RS 232 computer cable

Dimensions

  • Width* Height* Depth: 376* 73* 264 (mm)
  • Weight: 1.5 kg
  • Power supply: 110 V – 240 V, 50 – 60 Hz
