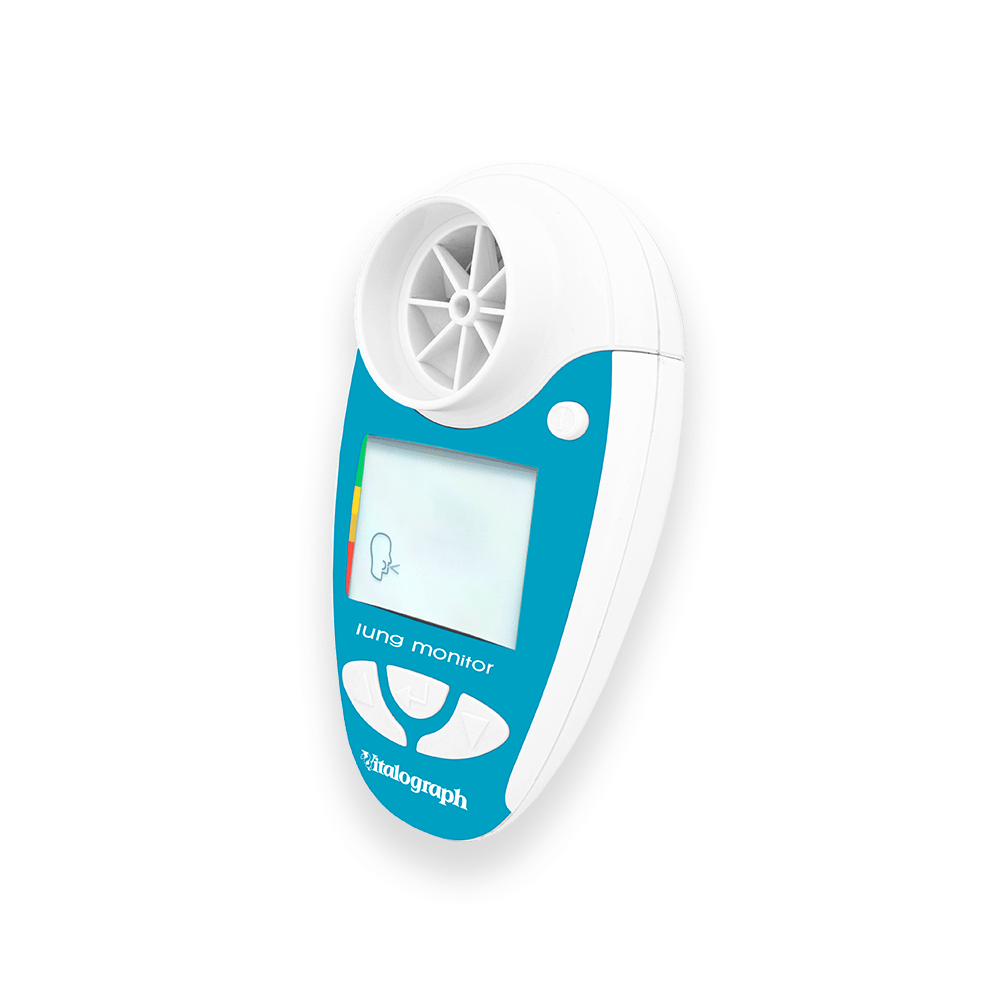

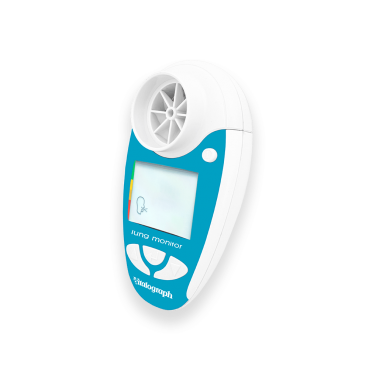

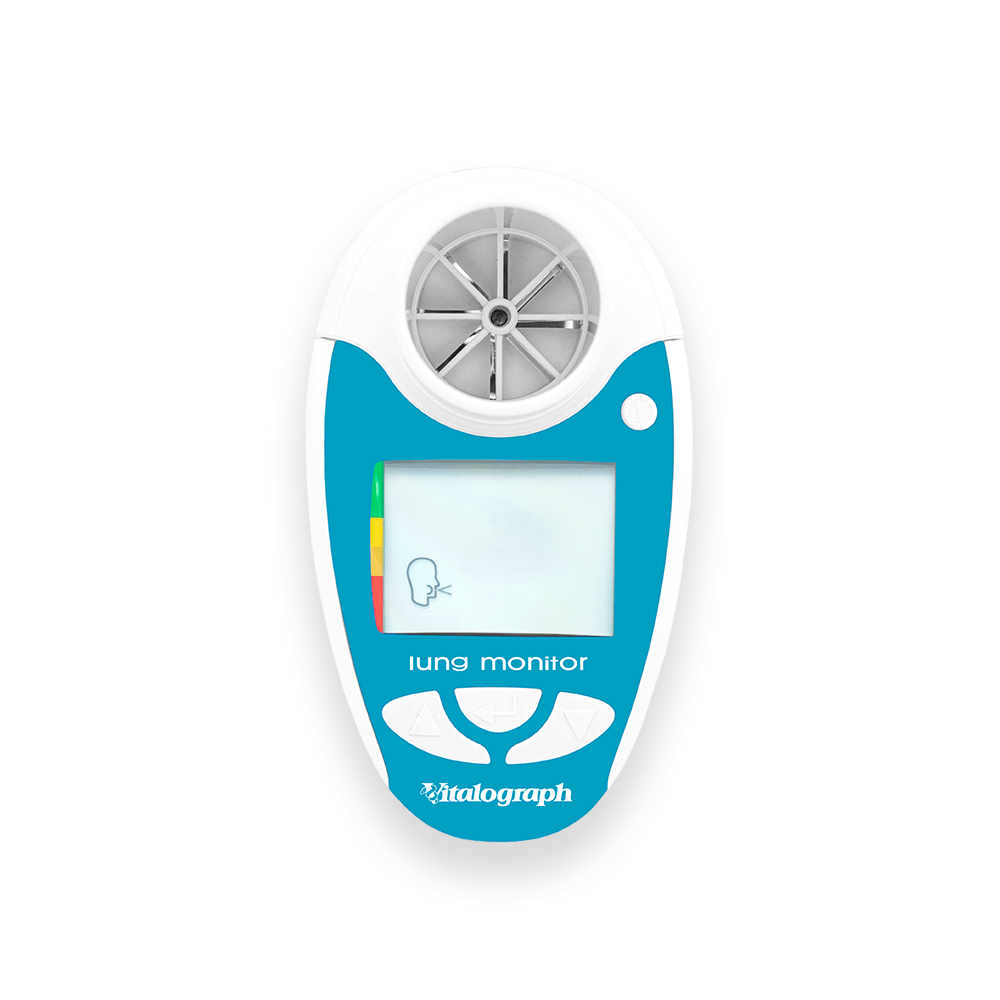

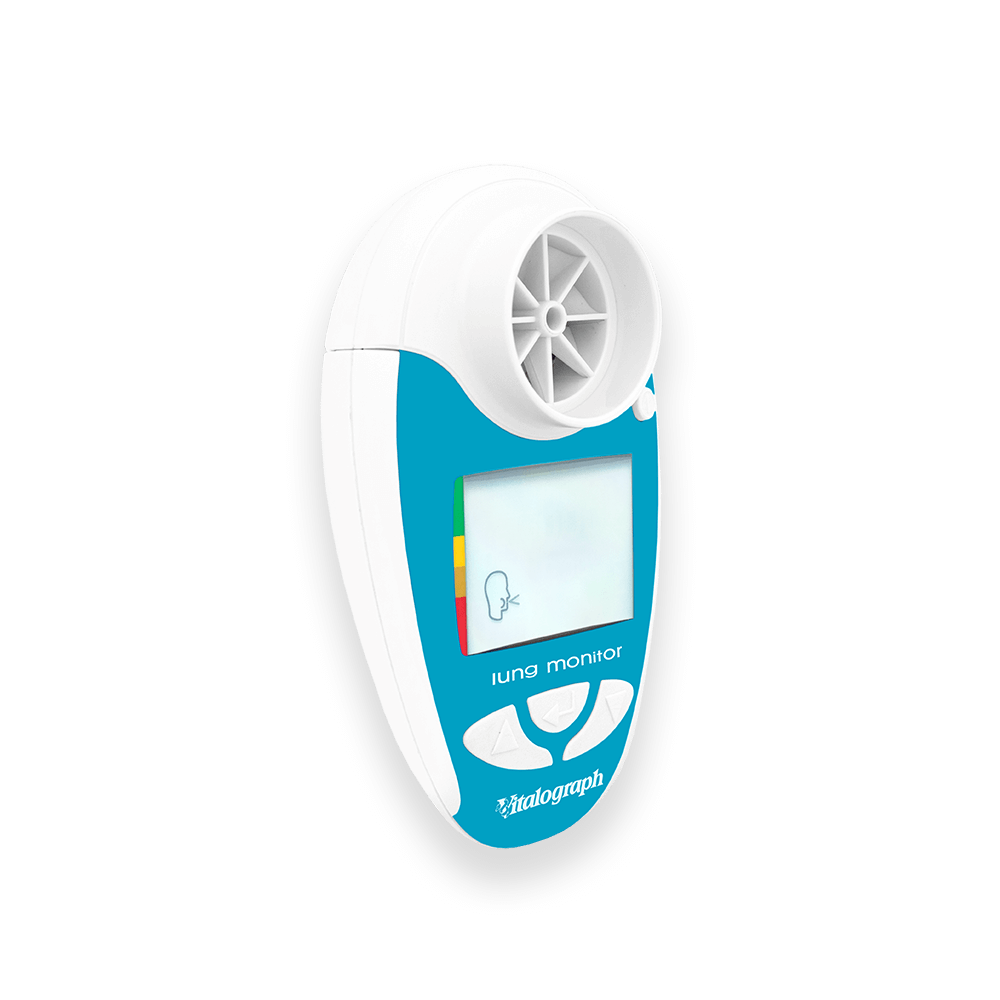

Vitalograph Lung Monitor
Fast, accurate lung function monitor for use at home, at work, in primary or secondary care.
Provides accurate and effective monitoring of lung function for respiratory conditions including COPD, cystic fibrosis and post-transplant patients. Ideal for monitoring at home, work, in clinical trials, in primary or secondary care.
- Measures FEV1, FEV6 and calculates the ratio.
- Large, easy to read display.
- Displays % of personal best FEV1.
- Electronic record – no need for record cards.
- Displays % of personal best FEV1.
- Automatically stores best values in a test session.
- Quality of blow indicator.
- 200 test memory.

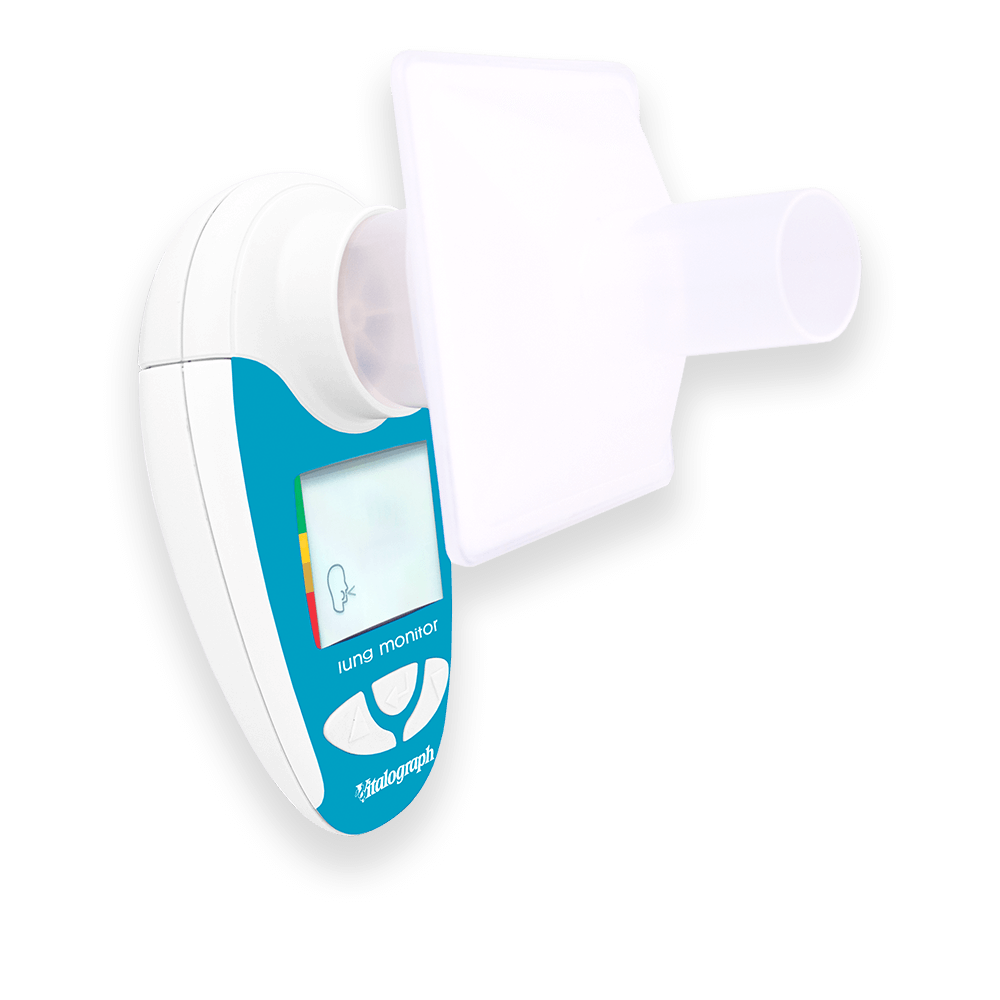

- Suitable for multi-subject use in clinic with Bacterial Viral Filters (BVF™).
- CE certified.

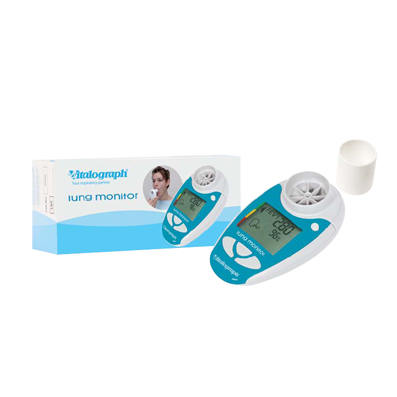

One of our 4000 Series of respiratory monitors and screeners, the Lung Monitor comes with:
- Pouch
- Instructions for use
- 2 x AAA Batteries

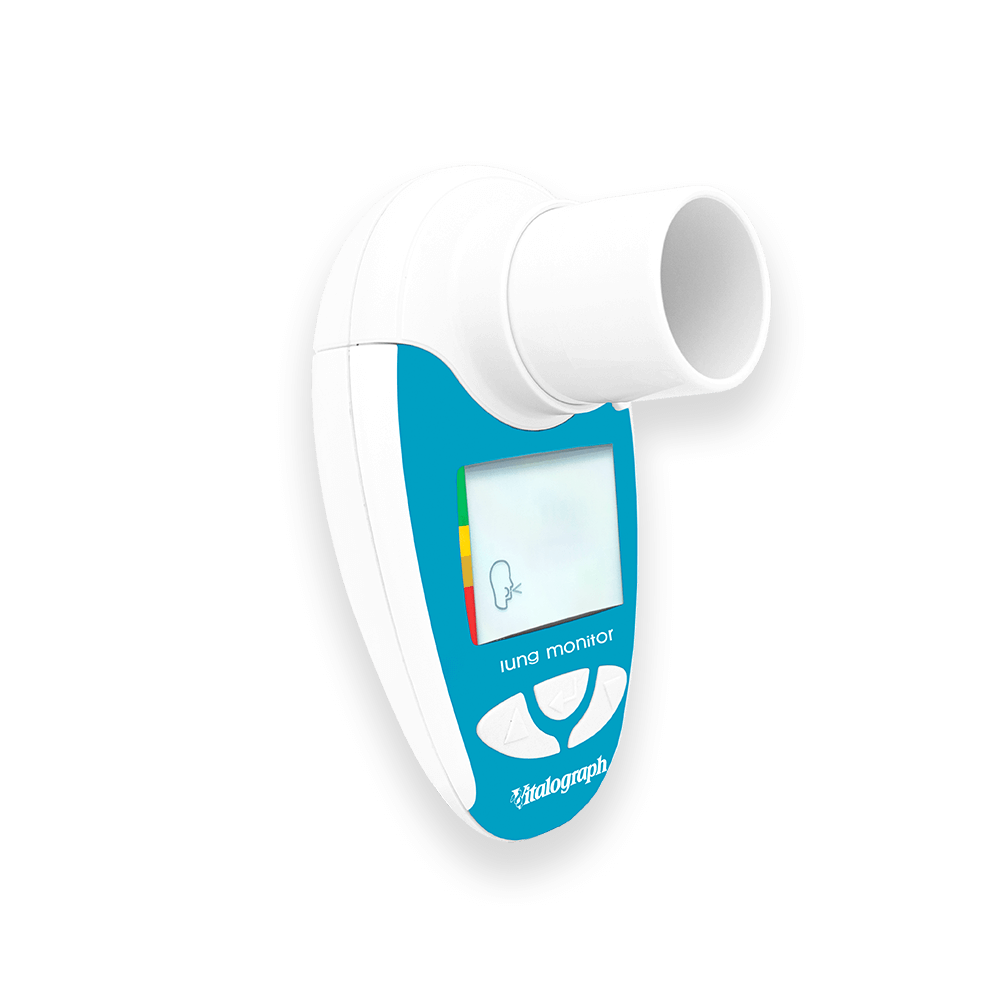

- Plastic mouthpiece for single patient use
Product Code: 40550
Respiratory Monitor lung monitor
Model 4000
Dimensions 109mm (length) x 63mm (width) x 42mm (height)
Flow Detection Principal Stator rotor
Accuracy Better than ± 3% (FEV1)
Back Pressure Less than 0.15kPa/L/second @ 14L/s
Measurement Range FEV1: 0 – 9.99 L BTPS
Maximum Test Duration 6 seconds
Quality Check Slow start of test (Vext>5%) or a cough detected in the first second
Power Supply 3V (2 x 1.5V AAA batteries)
Expected Battery Life 3 months of use at 3 tests per day
Performance Standards & Guidelines ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009
Auto Power Down Time 2 minutes
- 28501 Eco BVF (100)
- 28572 Eco BVF + Disposable Noseclips (80)
- 40168 Plastic Mouthpiece 4000 series (20)
- 20303 Disposable Noseclips (200)
- 40167 Pouch Spare (x10)
- 20242 SafeTway Mouthpieces (200)
