Spirotrac 6 Software

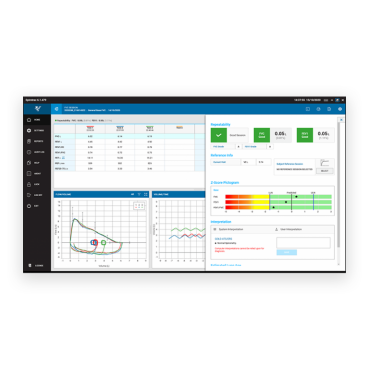

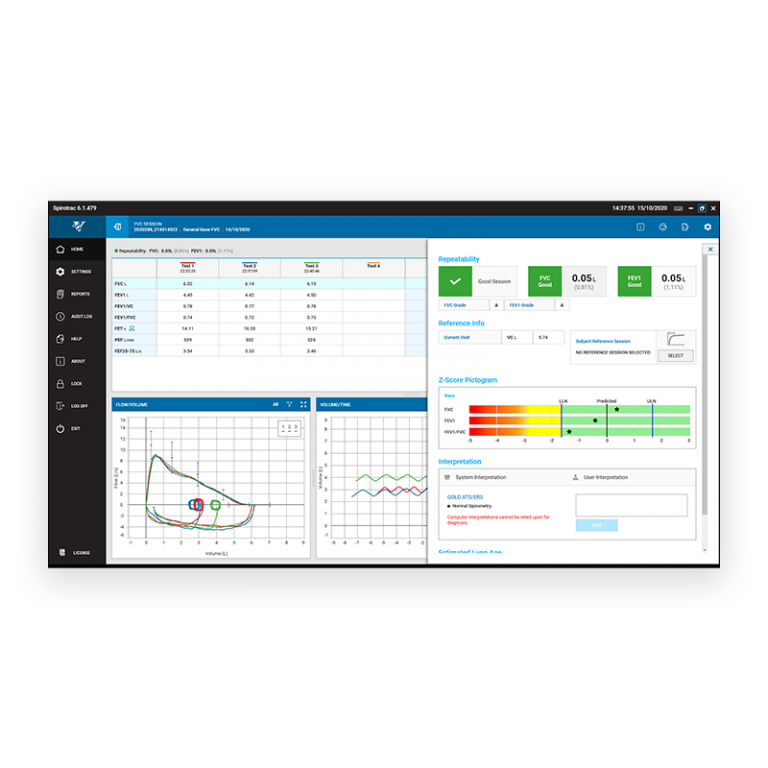

Website_ScreenShot_1_Sp6-FVC_QA_Analysis-768×768

Vitalograph Spirotrac® 6 is a powerful and flexible diagnostic workstation software, with the ability to integrate test results with electronic medical record (EMR) systems. Suitable for general healthcare and occupational health environments.

Featuring a new user interface design based on customer feedback, Spirotrac is now even more intuitive and easy-to-use. It allows you to consolidate both Spirometry and ECG through a single, flexible, and powerful application solution. Filing and storing results could not be simpler with fast connection to your EMR system.

Spirotrac 6 is compliant with the latest ATS/ERS 2019 guidelines and is compatible with the new range of Vitalograph products including the PC based Pneumotrac™ for spirometry, and the BT12 for 12 lead resting ECG.

Features:

Spirometry

  • VC, FVC, Bronchodilator Responsiveness Testing, and Peak Cough Flow (PCF) Testing.
  • Uses recommended latest NHANES and GLI spirometry predicted equations with LLN, %Pred and Z-scores for accurate assessment of abnormality.

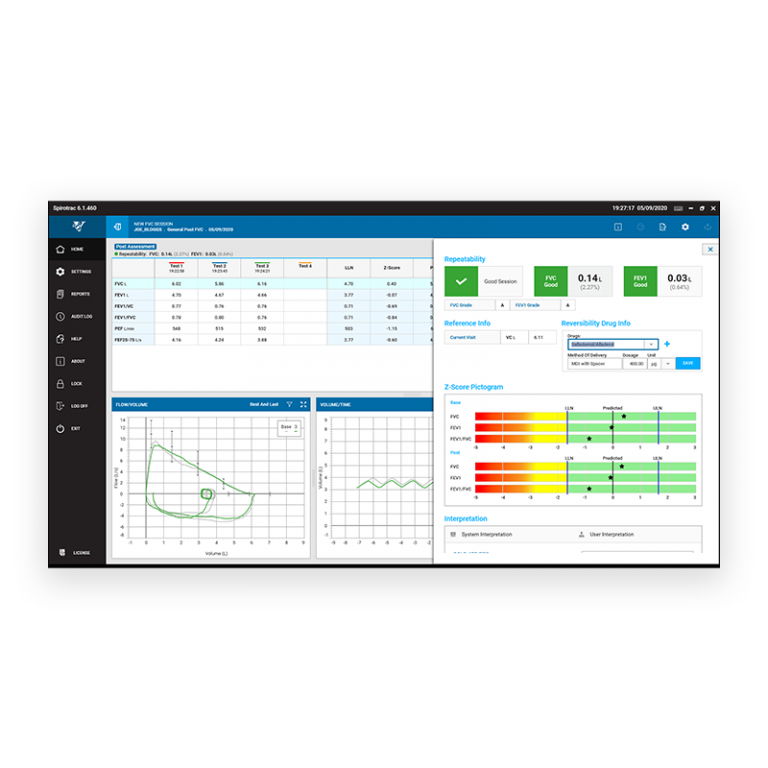

  • Achieve the best possible results with enhanced quality assurance:
    • Featuring ATS/ERS 2019 grading system for acceptability
    • Live onscreen repeatability feedback (volume and percent)
    • Z-score pictogram for fast and easy comparison of results to predicted values
    • High quality incentives to help improve subject cooperation and performance
    • New filtering options for graphs allow the operator to select which trials to display (Show All, Show Best, Show Best 3, Show Best and Last)
    • Automatic interpretation based on latest ATS/ERS & GOLD standards
  • Save time and ensure consistency using the Standardised Operator Comments to quickly add review comments to the subject record.
  • Monitor historical changes in lung function by comparing results and view trends over time.

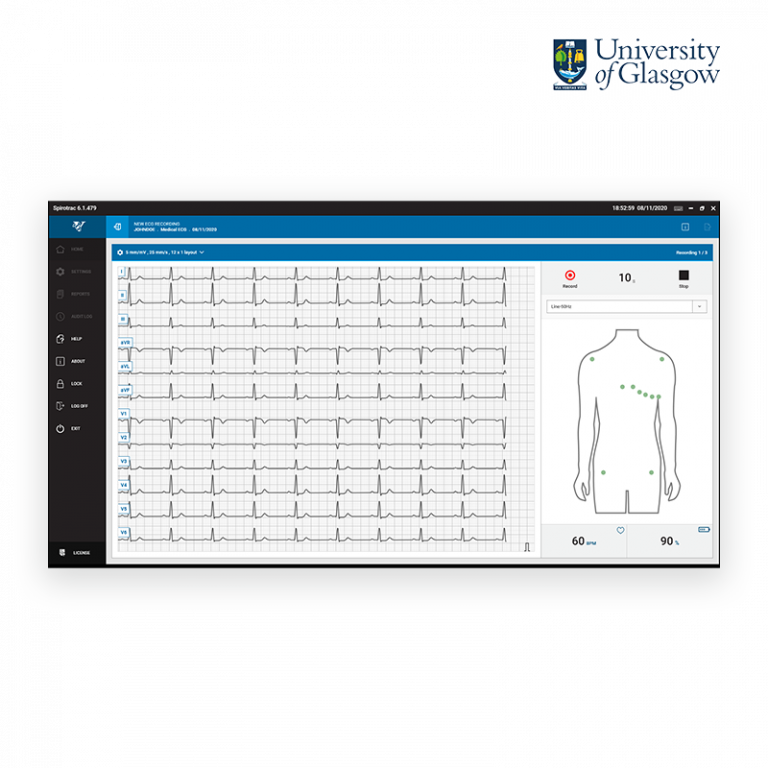

12-lead Resting ECG

  • Accurate and detailed results based on University of Glasgow interpretation algorithm.
  • Transmits ECG traces wirelessly reducing lead artifact.
  • Display ECG trace in real-time with multiple options for viewing and printing.

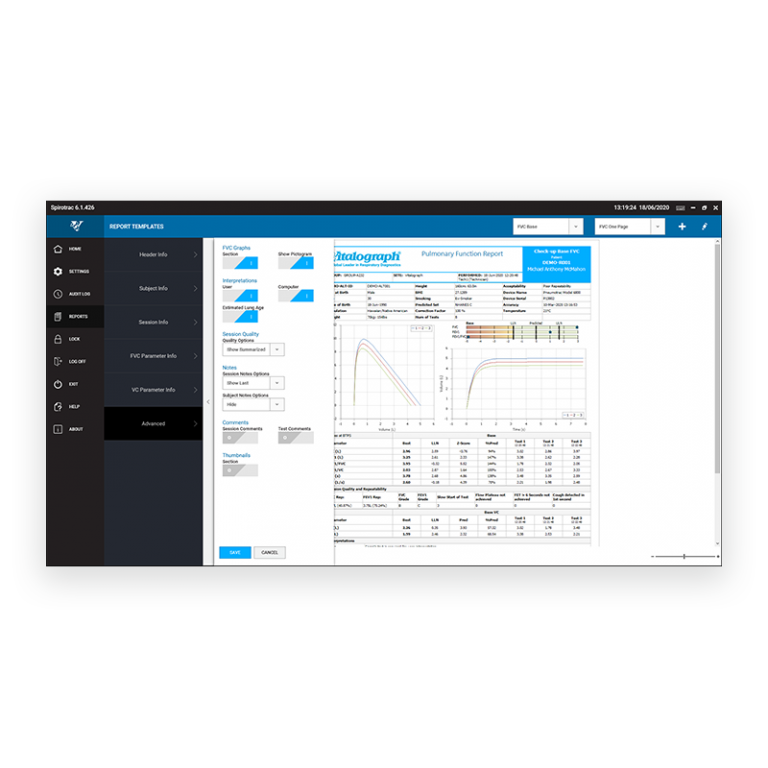

Configurable Reports

  • Customize reports and choose which parameters to display.

Advanced database

  • Create and assign subjects to groups, perfect for multiple test sites and Occupational Health

Vitalograph Connect

  • Middleware software linking EMR systems with Vitalograph products including Spirotrac.
  • Eliminate errors and improve workflow with subject details automatically transferred from clinical system to Spirotrac.
  • Enhanced data safety.
  • Save precious time as read codes and test reports (PDF format) are automatically filed to the correct subject’s medical record. No need to scan reports!

Updates

  • Spirotrac software is constantly updated with new features and benefits. To find out the latest additions, and for a complete history of updates click here.
Product Vitalograph Spirotrac
Model 7000
Performance Standards & Guidelines ATS/ERS 2019, ISO 23747:2015 & ISO 26782:2009
QA/GMP standards EN ISO 13485, FDA 21 CFR 820, CMDR
  • Processor Speed: 2.00 GHz or faster
  • RAM: 2GB (Min), 4GB (Recommended)
  • Disk Space: If the .NET version 4.8 framework is not already installed this will require an additional 2 Gigabyte of hard disk space. If SQL Server Express is not already installed this will require an additional 1 Gigabyte of hard disk space
  • Operating System: Microsoft Windows 10, Microsoft Windows 11

Other:

  • Microsoft .NET Framework 4.8
  • USB port for Pneumotrac or other compatible devices
  • A monitor that supports a screen resolution of 1280 x 800 pixels.
  • Bluetooth support for the BT-12 ECG device
Test Types Supported Spirometry: Single breath testing, multi-breath testing, tidal breathing. VC, FVC, PCF, Bronchodilator Responsiveness.
Respiratory Muscle testing: MIP, MEP, SNIP
ECG: 12 lead 10 second trace
FVC Parameters FVC, FEV1, FEV6, FEV1/FVC, FEV1/FEV6, FEV1 Ratio, PEF (L/s), PEF(L/min), FIVC, PIF (L/s) , PIF (L/min), EF25-75, TV, IRV, ERV, IC, EV, TExt, TPef, FET, FEV.5, FEV.5/FVC, FEV.75, FEV.75/FVC, FEV3, FEV3/FVC, FEV6/FVC, FEF0.2-1.2, FEF75-85, FEF2575/FVC, FEF25, FEF50, FEF75, FEV1/PEF, FIF25, FIF50, FIF75, FIF50/FEF50, FIVC/FVC, FIV1, FEV1/FIVC, FIV1/FIVC, FIV1/FVC, FEF50/FIF50, MVVind, EV/FVC, FMFT, IVC, FEV1/IVC, FEFmax, EOTV , FEV1/HT2, FEV1/VC, FEV3/VC, RAWind, RV, FRC, TLC, Lung Age, EOTV, THes, Rise Time

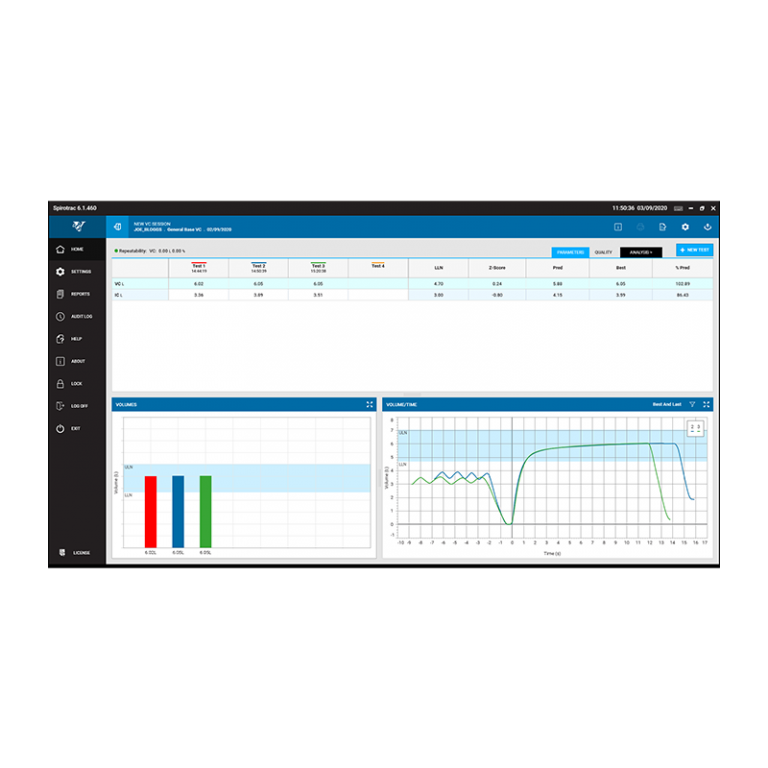

VC Parameters VC, IVC, EVC, TV, IC, ERV, TLC, FRC, RV
ECG Parameters HR[/min] HR[/min] Heart Rate RR[ms] R-R interval P[ms] Duration of the P wave PQ[ms] Duration of the PQ interval ST[ms] Duration of the ST segment PR[ms] Duration of the PR interval QRS[ms] Duration of the QRS complex QT[ms] Q-T interval QTc[ms] Q-T interval, corrected by the heart rate with options Fridericia, Framingham, Bazett and Hodges
Predicted Values Selectable GLI (Quanjer 2012), NHANES, ERS 93
Suggested Interpretation ATS/ERS Gold
Database MS SQL server
Device classification IIa per Annex IX of the MDD
EMR Connectivity HL7, GDT
Export Options Pdf reports
Import Options Spirotrac V Database Migration
Languages English

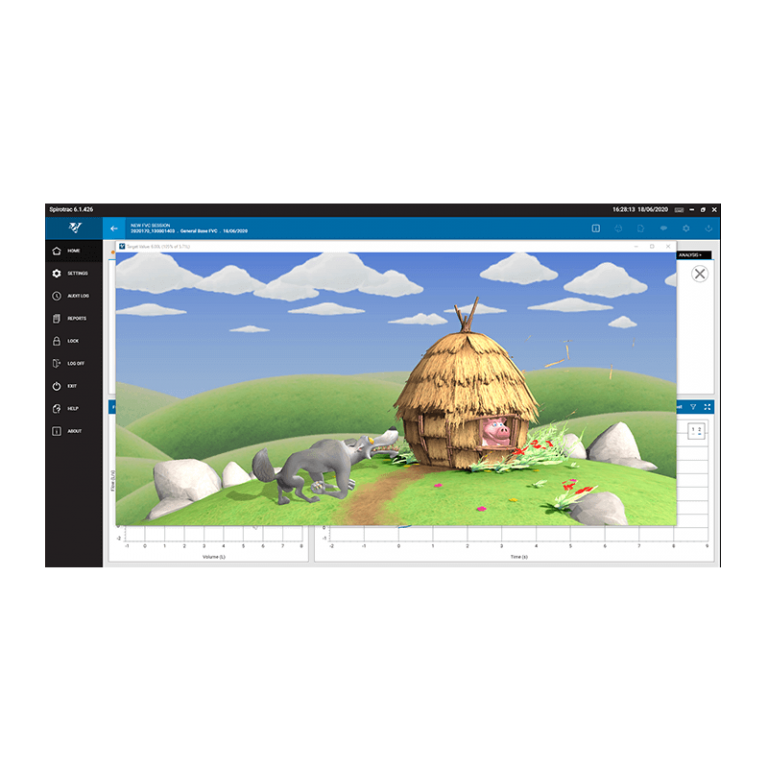

Incentives Candles, Ball and Tube, Big Bad Wolf
Trending Automatic FEV1 trend. Additional parameters also available.
Reporting Comprehensive configurable PDF reports
  • 70201 Spirotrac Multi-User Licence
  • 28750 BVF_ Bacterial/Viral Filters (50)
  • 20242 SafeTway Mouthpieces (200)
  • 20201 Cardboard Mouthpieces (200)
  • 20303 Noseclip Disposable (200)
  • 36020 Precision Syringe 3-L
  • 66149 Thermal printer paper (5)
  • 42084 Flow conditioning meshes (10)
