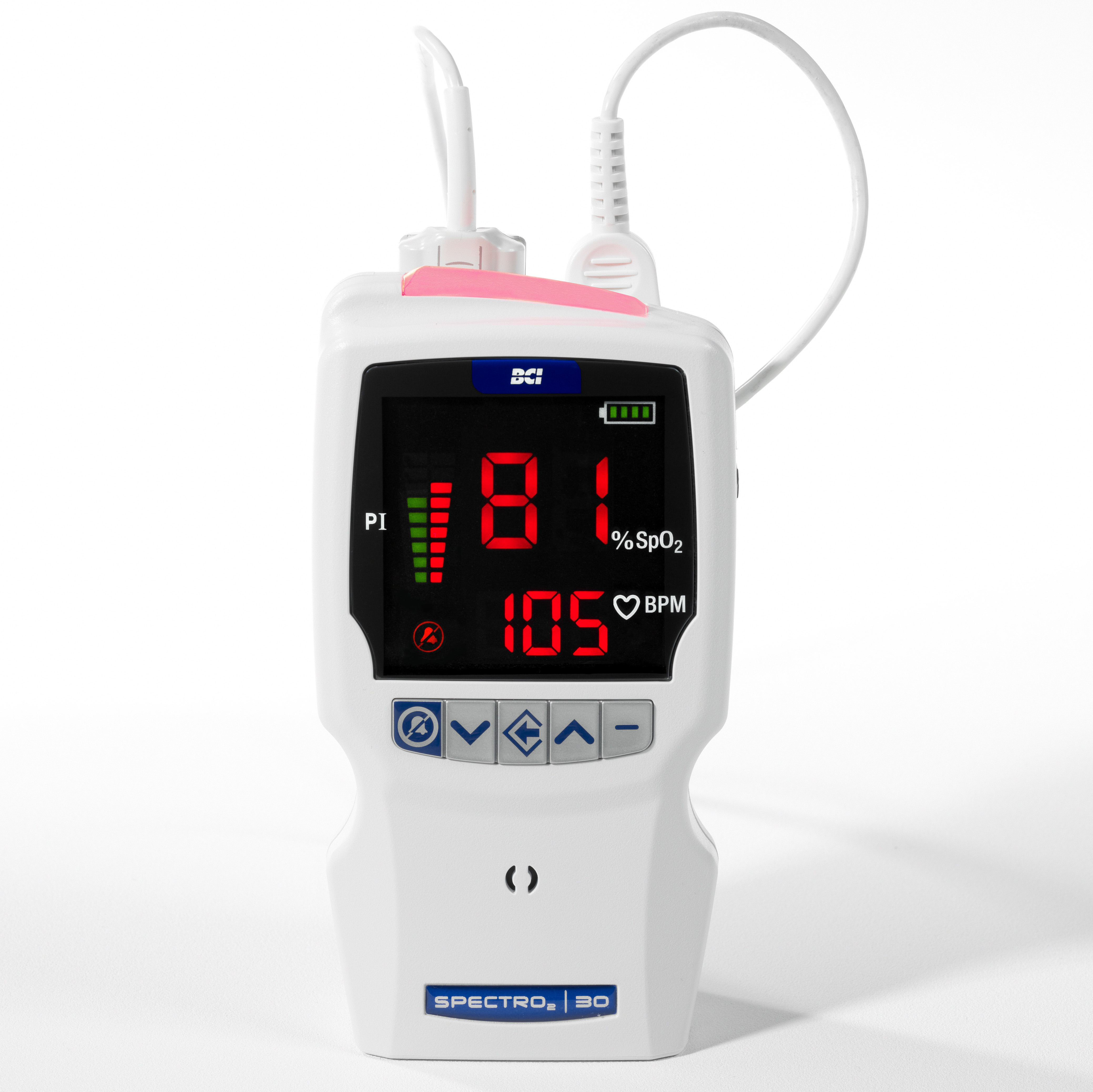

SPECTRO2 30 Digital Pulse Oximeter

Spectro 2 30

The SPECTRO2 30 with alarms, part of the Spectro Range of pulse oximeters, by Smiths BCI.  Utilising BCI patented technology, the SPECTRO2 30 pulse oximeter can be trusted for dependable readings on a wide range of patients in the most challenging situations.

With audible and visual alarms, the SPECTRO2 30 includes multiple operating modes and the ability to be alerted through a remote nurse call system to ensure patient safety.  The SPECTRO2 30 oximeter enables healthcare providers to monitor for efficacy of respiratory treatments.

  • At risk patients
  • Sleep screening
  • Post anesthesia recovery
  • Analgesics monitoring



  • The SPECTRO2 30 Features include:
  • Visual, audible and remote alarms – Alerts for potential clinical intervention, Remote alarm operates through nurse call system .
  • Dependable readings for a wide range of patients in challenging situations-low perfusion performance and motion tolerance.
  • PI (Pulse amplitude Index) Indicator enables confidence in results
  • Versatility with multiple sensors – compatible with all BCI sensors , Nellcor sensor compatibility.
  • One of the largest displays on the hand-held market – At-a-glance patient assessment, easy to view from wide angles, 50% larger LEDs than comparable hand-held devices.
  • On-board sensor storage cradle – Stores and protects sensor when not in use.
  • Programmable modes – Clinician, home and sleep modes
  • Tested with Nellcor DS100A sensor.

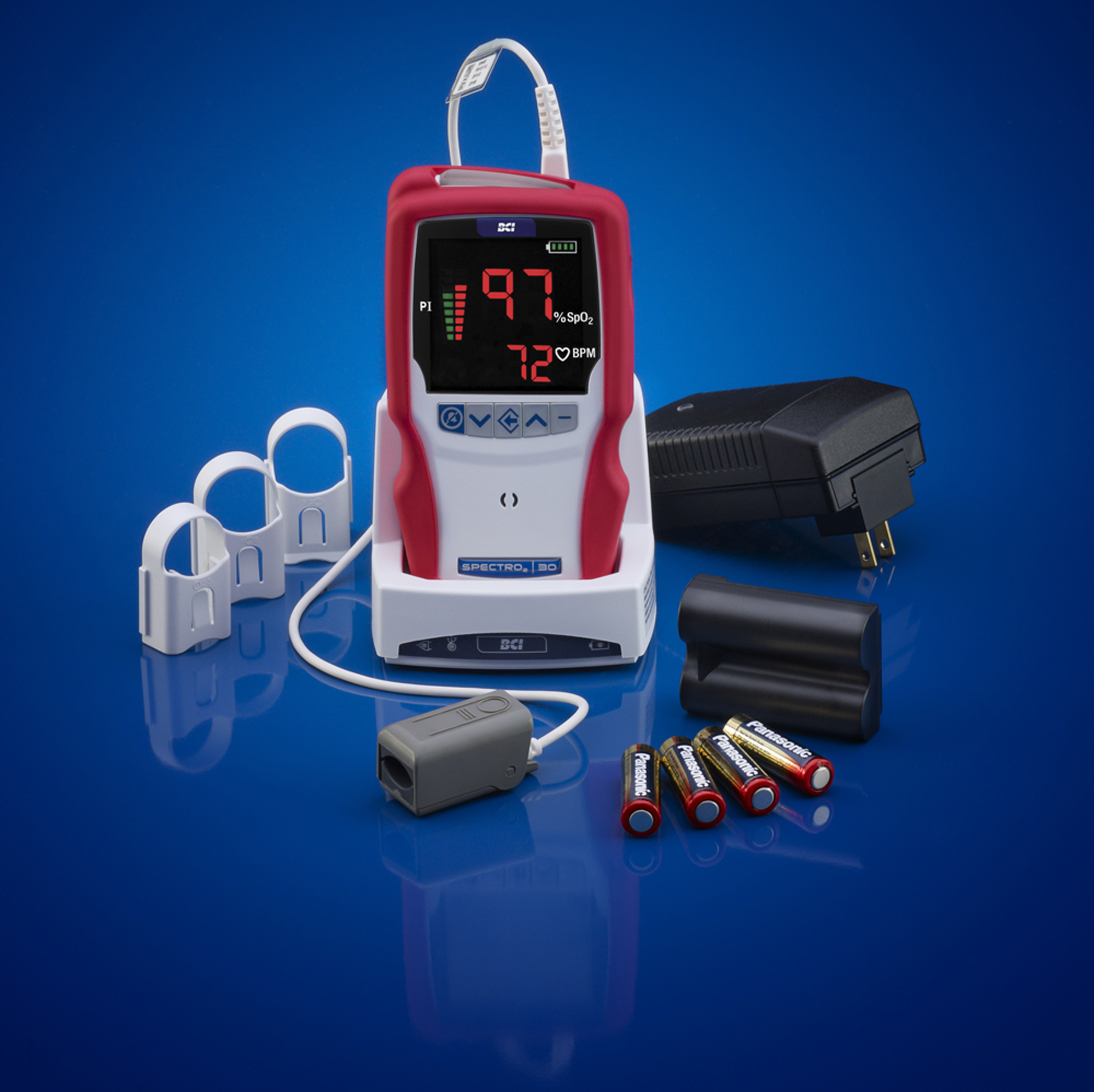

Accessories: Docking station; attachable printer; power options including disposable batteries, AC power, BCI rechargeable lithium ion battery, USB cable; protective rubber covers, SPECTRO2 Logix Clinical Analysis Software. 3 Year Warranty

Product: BCI Spectro2 30 Digital Pulse Oximeter

Part No: WW1030

DISPLAYS AND INDICATORS

  • Keys
  • 5-button keypad for menu navigation and device calibration; ON/OFF button
  • SpO2 (FUNCTIONAL)
  • Range
  • 0 to 100%(1%increments); displaymaximum99%
  • Standard Accuracy
  • Adult / Ped ±2 A rms at 70 – 100%
  • Neonate1 ±3 Arms at 70 – 100%
  • Less than 70%unspecified
  • Low Perfusion Accuracy
  • Adult / Ped ±2 A rms at 70 – 100%
  • Neonate1 ±3 Arms at 70 – 100%
  • Less than 70%unspecified
  • Motion Accuracy2
  • Adult / Ped ±3 A rms at 70 – 100%
  • Less than 70%unspecifed
  • Averaging
  • 2 (SleepMode only); 4, 8, or 16 pulses (default = 8)
  • Alarms
  • High: and 99 – 51, 1 step (%SpO 2) increments
  • Low: 50 – 99, 1 step (%Sp O2) increments

PULSE SIGNAL STRENGTH

  • Range
  • 0 to 9 indicator, indicates logarithmic strength of
  • patient pulse
  • Display – 9-segment red LED bar graph

PULSE RATE

  • Range – 20 – 300 bpm(1 bpm increments)
  • Standard Accuracy – ±2 Arms
  • Low Perfusion Accuracy – ±3 Arms over 25 – 250 bpm range
  • Less than 70%unspecifed (Pulse amplitude <1%. Tested using industry standard simulator.)
  • Averaging 8 or 16 seconds (default = 8); SleepMode = 8

Alarms

  • High: 300 – 21 bpm in 1 bpm increments
  • Low: 20 – 299 bpm in 1 bpm increments

PULSE AMPLITUDE INDEX

  • Range – 0.03%- 20%(0.01%increments)
  • Display – 9-segment green/yellowLED bar graph

POWER REQUIREMENTS

  • Battery
  • 4 “AA” alkaline or custom 2-cell Lithium Ion rechargeable battery pack
  • External (from mains)
  • 9V, 3A output; input of 100-240 VAC, 50Hz, 60Hz
  • External (fromUSB)
  • Input: 5V, 500mA max (USB powered source)
  • Output: 9V, 230mA max to oximeter

BATTERY LIFE

  • Alkaline Cells Life
  • Approx. 17 hours of continuous use
  • Rechargeable Battery Life
  • Approx. 30 hours of continuous use (new);
  • Approx. 3 hours typical recharge time
  • MEMORY – Stores data for up to 99 patients
  • TREND STORAGE Parameters
  • %SpO2, Pulse Rate, Pulse amplitude Index and absolute time from RTC
  • Interval – Selectable from 2 to 30 seconds in 1 second intervals (2, 3, 4, 5,—30)
  • Capacity – 72 hours of storage at 2 second intervals
  • External Connectors
  • Oximeter Sensor DB-9 Connector; Custom interconnect allowing connection for either USB communications, AC Mains Power input, or dock connection with or without printer

ENVIRONMENT

  • Operating Temperature
  • Oximeter and accessories: 0C to 55C
  • Power supply: 0C to 40C
  • Li+ battery charging: 5C to 45C
  • Relative Humidity
  • Operating: 15 to 95%(non-condensing)
  • Storage: 10 to 95%(non-condensing)
  • Altitude – Up to 3,048
  • Shock and Vibration – Transport per ISO 9919

PHYSICAL

  • Dimensions (mm) – 84 Wx 155 H x 43 D in
  • Weight – 340g including four “AA” batteries

STANDARDS

  • EN60601-1, EN60601-1-2, ISO 9919
  • WARRANTY – 3 years



  • WW1095OUS Mains adaptor
  • WW1026SYS Attachable Printer
  • WW1018R Red Protective Rubber Glove
  • WW1018B Blue Protective Rubber Glove
  • WW1018G Green Protective Rubber Glove
  • WW1018Y Yellow Protective Rubber Glove
