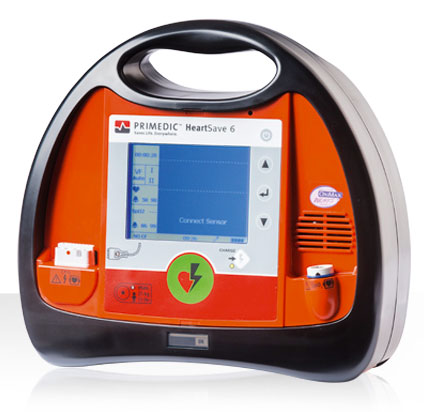

Primedic HeartSave 6/6S Defibrillator

HeartSave-6

Primedic Heartsave 6/6S Defibrillator, for use by professionals.  From the 6-lead ECG to SpO2 mo­ni­to­ring, the HeartS­a­ve 6 se­ries of­fers ever­y­thing you need for emer­gen­cy mo­ni­to­ring.

Manual Operation/Synchronous defibrillation

Once swit­ched on, the HeartS­a­ve 6/6S is in au­to­ma­tic mode. If ne­cessa­ry, the user can switch the de­vice to ma­nu­al mode at the touch of a but­ton. If a QRS com­plex is de­tec­ted in ma­nu­al mode, syn­chro­nous mar­kers are au­to­ma­ti­cal­ly as­si­gned to the R wave and car­dio­ver­si­on is enab­led. In ma­nu­al mode, it is pos­si­ble to select one of the fol­lo­wing power le­vels: 50 J, 100 J, 200 J, 300 J and 360 J.



Monitoring

The 3-co­re ECG pa­ti­ent cable in­clu­ded in de­li­very makes af­for­da­ble pa­ti­ent mo­ni­to­ring pos­si­ble. Sim­ple plug­ging and un­plug­ging de­li­vers a high de­gree of fle­xi­bi­li­ty.

  • Voice prompts in four lan­gua­ges
  • Freely selectable language packs
  • Primedic AkuPak (Li-ion) or 6-ye­ar li­thi­um bat­te­ry
  • Extensive alarm functions.
  • Com­pact Flash Card, ECG Viewer

An extended range of defibrillators for professional use is also available.

Product: Spacelabs Primedic HeartSave AED-M Defibrillator – for professional use

Part No: 97581

  • Defibrillation
    • Impulse shape: biphasic, current-controlled impulses, external (CCD)
    • Energy in automatic mode: 50 – 360 J according to patient impedance
    • Manual energy stages Adult: 50J, 100J, 200J, 300J, 360J
    • Manual energy stages paediatric: 20J, 40J, 60J, 80J, 100J
    • Asystole threshold < 200 μV
    • Artefact detection
    • Pacemaker detection
    • Pediatric Mode: Pediatric button or Savepads Mini
    • Cardioversion: Auto-synchronous mode, QRS Marker
  • ECG
    • Derivation: Eindhoven I, II, III Goldberger avL, avR, aVF
    • Patient resistance: 23 – 200 Ohm
    • Heart rate: 30 – 300 per min.
    • Alarms: 30 – 300 per min.
  • Monitor
    • Model: LCD, blue mode
    • Dimensions:115 x 86mm (diagonal 144mm)
    • Resolution: 320 x 240 pixels
    • Battery Capacity Display
    • Speed: 25mm/s
    • Sensitivity: 10mm/mV
    • User Information: Language instructions, heart rate, number of defibrillations, ECG curve, number of deteted VF/VT, total resuscitation time
  • Pulse Oximeter
    • Model: Nellcor Oximax
  • Defibrillation electrodes
    • Adhesive Electrodes (hands free)
    • Shelf life: 36 months
    • Cable length: according to the model between 1,3 m and 2,0 m
    • Active electrode surface: 174 cm² overall
  • Data management
    • Removable memory: CompactFlash (CF) card 2GB
    • Data/voice recording: approx. >75 h data and voice recording
    • Voice recording can be activated/deactivated
    • Read out software
  • Power supply
    • Battery 6
    • Model: LiMnO2
    • Voltage: 15 V
    • Capacity (nominal): 2.8 Ah
    • Service life: 6 years
    • Discharges/shocks: 200@360J
    • Monitoring: 15 h
    • AkuPak LITE
    • Model: LiFePO4
    • Capacity (nominal): 2.3Ah
    • Discharges/Shocks: 150@200J
    • Monitoring: 5h
    • Charge time: Approx 3 hours
    • Accessories: Clip charger for Accupac
  • Environmental conditions
    • Operating condition: 0°C … 55°C (30…95% rel. humidity without condensation, 700 … 1060 hPa)
    • Storage conditions: -20°C … +70°C (20…95% rel. humidity without condensation, 500 … 1060 hPa)
  • Resuscitation guidelines
    • guidelines 2010 (ERC/AHA) at factory
  • Protection Class
    •  IP55
  • Dimensions
    • Height x Width x Depth 25 cm x 28 cm x 9 cmWeight without power supply: approx 2.0KG
    • Weight incl. power supply : approx. 2.3 kg
  • Standard Scope of Delivery
    • 1 HeartSave HS6S, 1 AkuPak LITE or battery, 1 pair SavePads AED, 1 SaveCard, 1 ECG Viewer, 1 Patient Monitoring cable III, 1 ECG electrodes, 1 SpO2 sensor, 1 Patient Cable
