Medisun 2800 Innovation – PRO

Medisun-2800-Innovation

The Innovative UV-radiation cabin for optimised treatment of UV-sensitive skin diseases.

The medisun® 2800 Innovation is the new technological standard for whole-body UV treatment. Operation and control is carried out by an integrated touch PC with UV sensor measurement. UVA, UVB-311 or combined exposures can be carried out. Equipment with UVA-1 spectrum is also possible.

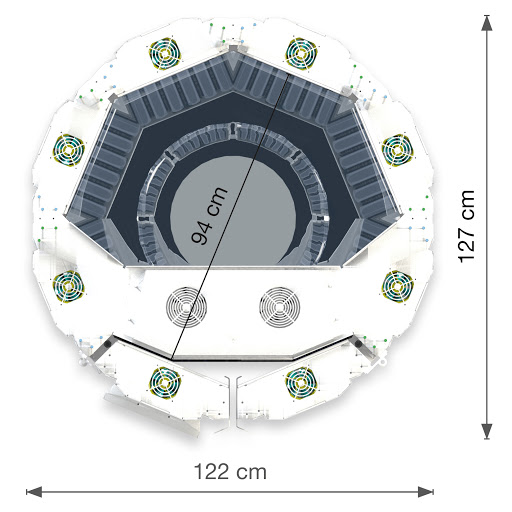

The ergonomic arrangement of the 8 modules, each with 5 UV lamps, in conjunction with a newly developed lamp control offers optimised dose accuracy. Even patients with different body sizes can now be dosed evenly.

Effective and optimised treatment of psoriasis, atopic eczema, vitiligo and other skin diseases.

Medisun 2800 Innovation UV cabins provide the highest level of safety, comfort and efficiency for both patients and treating healthcare professionals.

This comprehensive equipment includes many desirable features. For instance, an integrated touch screen conveniently controls the cabinet’s operation. The large interior creates a pleasant feeling of space for the patient. Conveniently placed grab handles in the interior and patient cooling provide additional comfort. The acrylic protective glass reliably prevents contact with the UV lamps for increased safety and comfort. In addition, there is also a fall protection for unstable patients. With many other equipment features, in the new Medisun 2800 PRO, Medisun UV cabins offer the highest level of safety, comfort, efficiency and ease of use.

  • 40 UV lamps in 8 columns
  • 200 cm lamp length for improved homogeneity
  • Mono or combination spectrum selectable
    (UVB-311, UVA, UVA-1)
  • Integrated 10,4“ Touch-PC control with
    dose preselection in J/cm²
  • Programmable dose limits
  • Redundant real-time UV sensor technology
    (2-fold UVA – 2-fold UVB-311)
  • Double wing door
  • Exposure with open door possible
    (for claustrophobic patients)
  • UV-impermeable viewing windows for patient
    monitoring
  • Automatic stop of exposure when door is opened
  • Start button and emergency stop switch in the
    passenger compartment
  • Continuously adjustable patient ventilation with
    2 fans
  • LC display with indication of remaining Exposure
    time in the interior
  • Sturdy metal housing (galvanized steel/aluminum)
    with Plastic powder coating
  • Voice system – voice output for patient information
    LED interior lighting
  • Intelligent low-noise lamp cooling system –
  • Voice system – voice output for patient information
  • LED interior lighting
  • Intelligent low-noise lamp cooling system –
  • 8 individually temperature controlled fans
  • High gloss lamp reflectors
  • Acrylic protective screens in front of the UV lamps
  • 2 handles inside for patient comfort and stability
  • Metal platform for maximum stability
  • 8 casters for easy movement of the cabin
  • Integrated dust filter system
  • Self-test diagnostic system
  • Remote maintenance via Teamviewer possible
  • Patient Safety System
