Mcube BioCon-700 Bladder Scanner

device_700

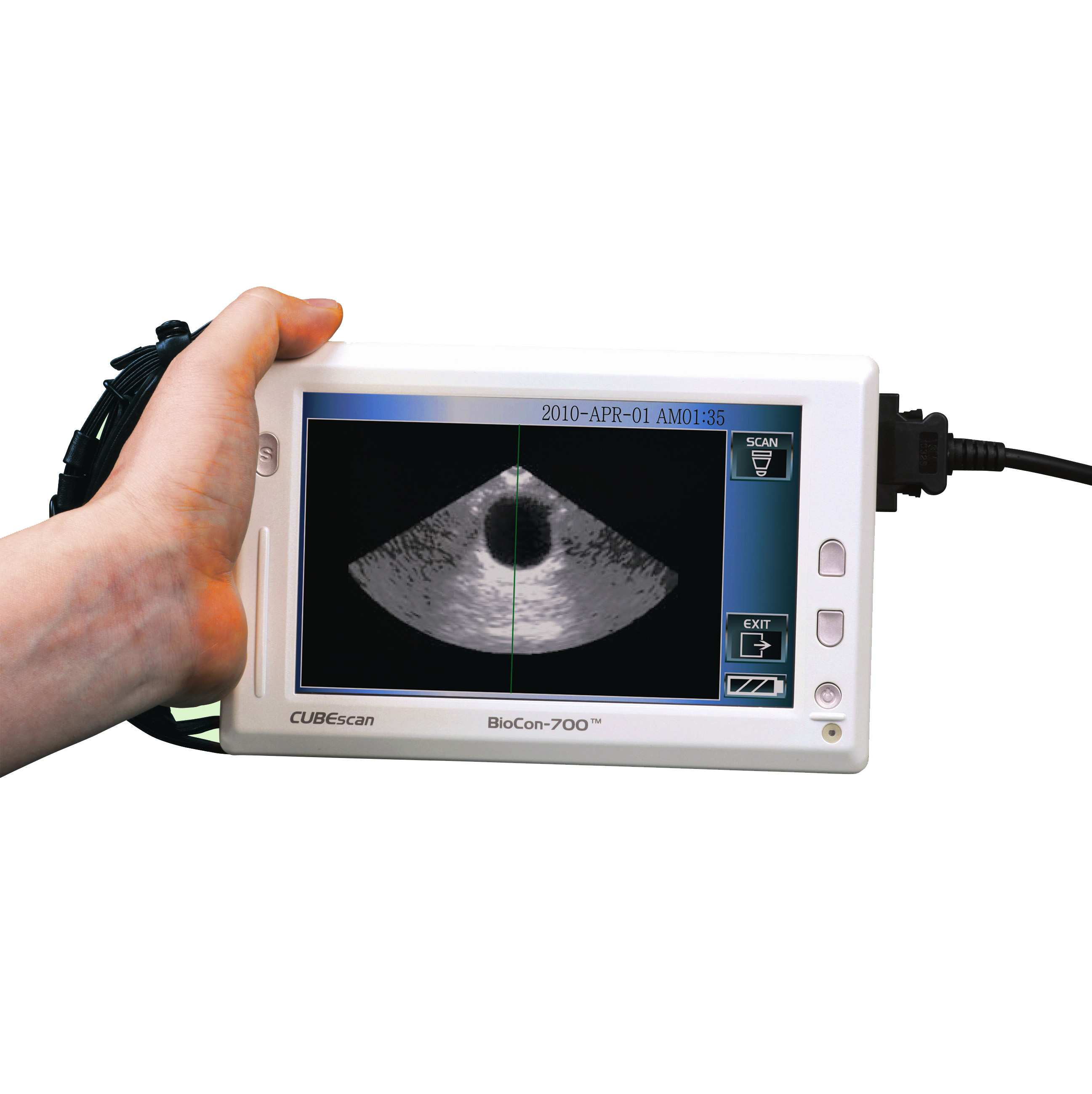

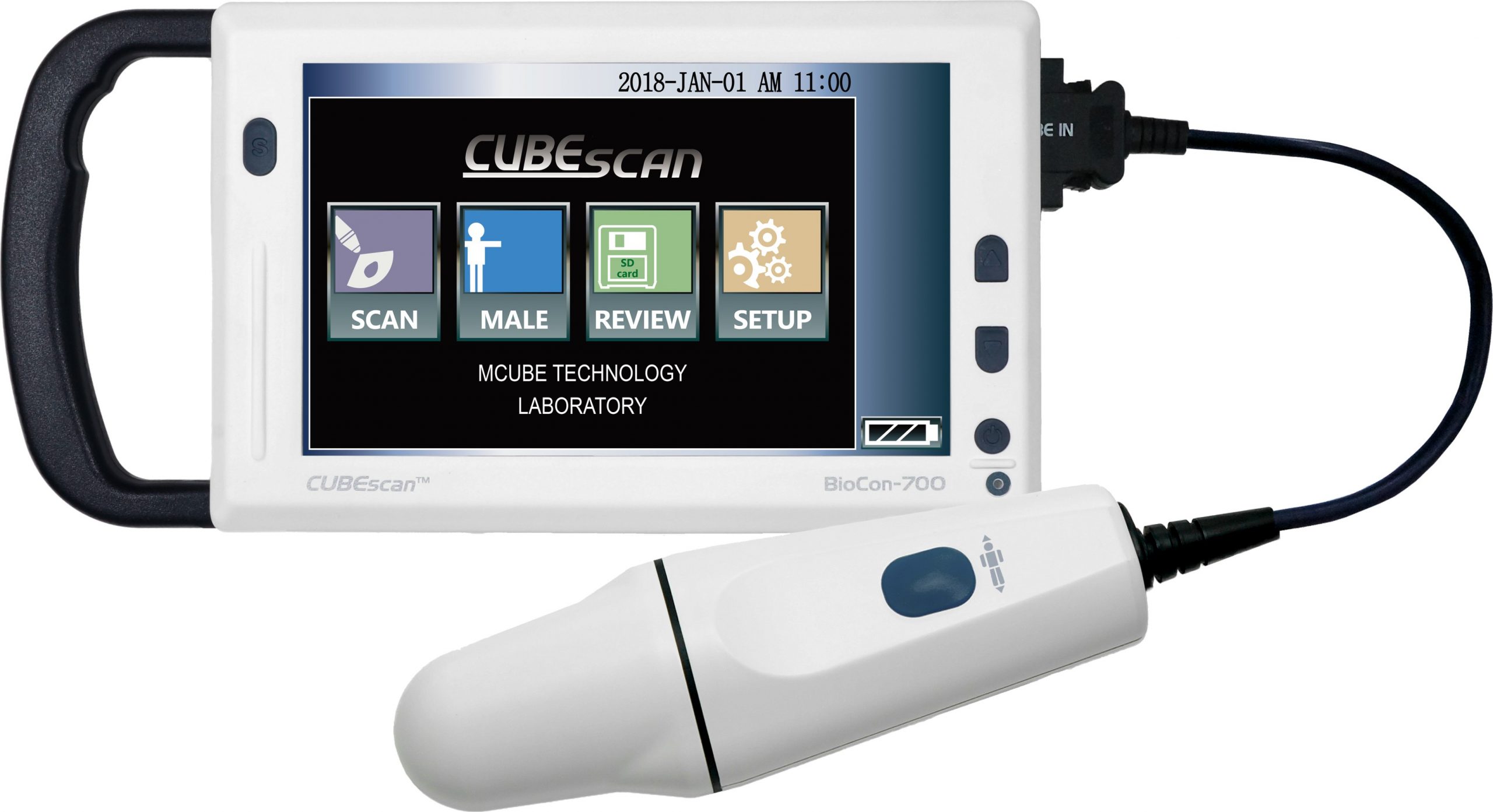

The BioCon-700 is a portable non-invasive ultrasound system intended to measure the volume of urine in a patient’s bladder.

The BioCon-700 uses ultrasound signals to determine the bladder’s outline and total volume of urine. The revolutionary real-time Pre-Scan function locates the bladder prior to scanning and improves the accuracy of results.

Easy-to-use colour touch screen for quick access. Immediate printout of results via the internal printer, or use the included CubeScan PC software to upload saved data to a computer for later review.

A compact, lightweight, hand-held device with a long-lasting internal rechargeable battery allowing for use in all locations. 36 Month Warranty

Product: Mcube CubeScan BioCon 700 Bladder Scanner

Part No: BioCon-700

  • Non-Invasive Measurement
  • Real-Time Pre-Scan
  • Review of scanned bladder images
  • Save and Retrieve scanned information
  • PC-transfer for scanned information
  • Built-in PrinterScreens urological problems
  • Evaluates urinary retention
  • Indicates bladder over-distension
  • Measures PVR (post-void residual)
  • Minimizes unnecessary catheter usage, thereby reducing incidence of urinary tract infection
  • Manage post-operative urinary retention
  • Preserves patient dignity
  • Reduces patients pain and discomfort
  • Improves quality of life
  • Reduces overall cost of care
  • Minimises Incontinence episodes
  • Improves quality of patient care
  • Saves time (5 second scan)
  • Saves total expenses (cost of care) through increased efficiencies
  • Display – 7″ TFT-LCD (WVGA), 16.7M colors (Color Touch Screen)
  • Volume Range – 0~999ml, Accuracy: 15%,15ml(0-999ml)*1)
  • Printer – Built-in (50mm width) thermal printer
  • Ultrasound Probe – 3D Sector Scan, 2.6MHz ultrasound frequency, B-Mode Scan, Scan Angle: 120
  • Power – 3A, 9V DC Adapter (Adapter Input: AC 100 ~ 240V 50/60Hz), 7.4V battery pack (Li-ion)
  • Dimension –
  • 66mm(L) x 202mm(W) x 130mm(H) (0.92Kg) Ultrasound Probe Parameter Maximum (ISPTA): 1mW/cm2, Maximum (ISPPA): 10W/cm2, Maximum MI(Mechanical Index): 0.9max, Transducer diameter: 10mm, Transducer Resonant Frequency: 2.6MHz.

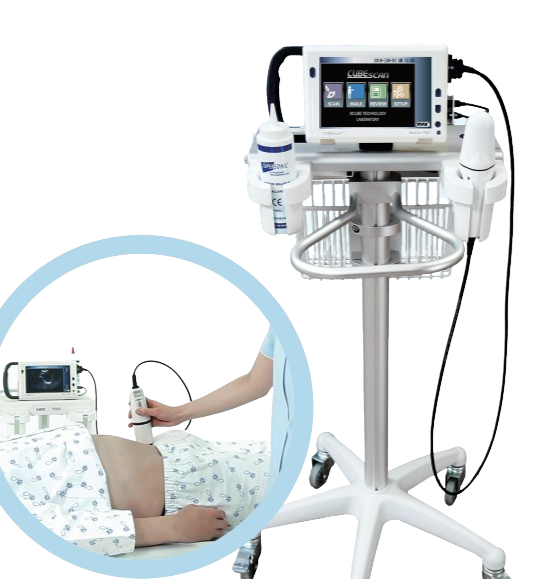

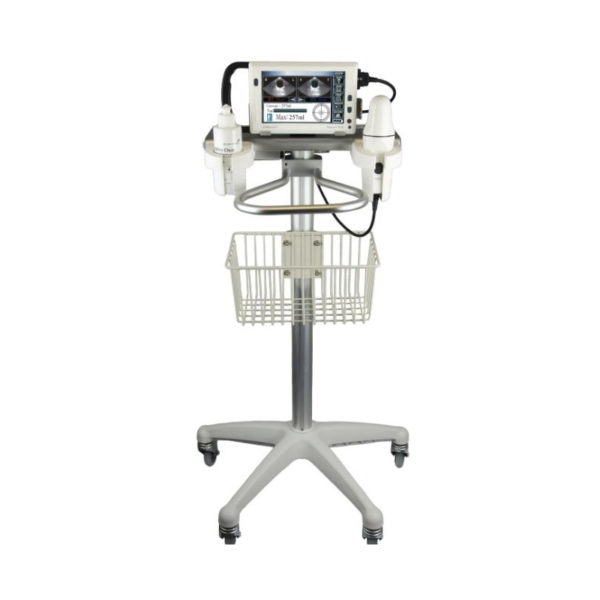

  • 3B70100015 - BioCon700 Bladder Scanner Trolley
  • 4M70100056 - BioCon700 Phantom Bladder Scanner
  • 17S21 00001- CalKit_S (Calibration tool for BioCon-700, Complete Set
  • 3B70100008 - BioCon700 Probe
  • 4ME0200010 - BioCon700 Carry Case
  • 4MC0000024 - BioCon700 Battery Pack
  • 4MC000014/S - BioCon700 paper
