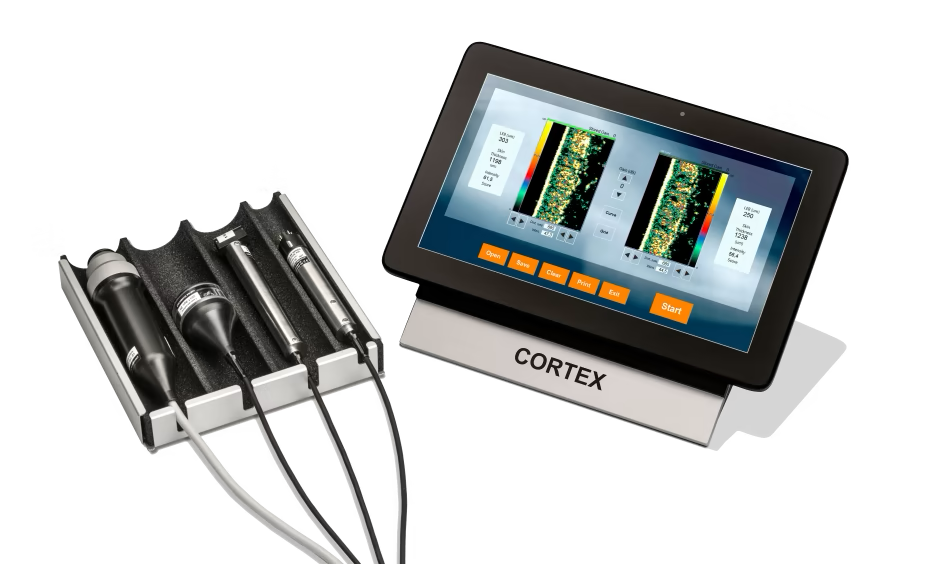

Cortex DermaLab Combo
Maximise your success with DermaLab Combo, the complete skin analysis solution
A complete and powerful multi-parameter skin analysis system operated by a wirelessly connected tablet PC. This unit can be freely configured with the following parameters: High resolution ultrasound, TEWL, elasticity, hydration, sebum, pH, temperature, video scope as well as skin colour (melanin and erythema).
Increase your success by performing advanced skin analysis. Use a professional flexible instrument that allows you to meet every need for skin measurement.
The DermaLab Combo is a highly accredited skin analysis powerhouse, which delivers all the parameters you need in one elegant instrument for true skin analysis.
In research the DermaLab Combo will provide you with the strong objective and valid data, you need in your documentation – provided by a trusted and recognised partner with many years of experience.
In the aesthetic clinic, you can identify treatment potentials and document results afterwards.
The data provided by the DermaLab Combo gives you solid knowledge and evidence, which will support your professionalism. Naturally, this will retain existing clients and lead to even more new clients.
Customize your DermaLab Combo
The DermaLab Combo supports 12 essential probes for skin analysis, including high resolution ultrasound, TEWL, elasticity, hydration, sebum, pH, temperature, videoscope camera as well as skin colour (melanin and erythema).
You can combine up to nine parameters in one instrument. By choosing the probes that meet your exact needs, you build your own customised DermaLab Combo.
Main Unit
Computer: WINDOWS based tablet or laptop.
Connectivity: USB and Ethernet, computer to interface unit via Bluetooth®. – Multichannel probe interface.
Application software: Dedicated LabView® based software.
Data export: Data may be exported to Excel spreadsheets.
Dimensions: 24 x 23 x 9 cm.
Options: USB connected storage medias, USB or wireless printer/keyboard/mouse.

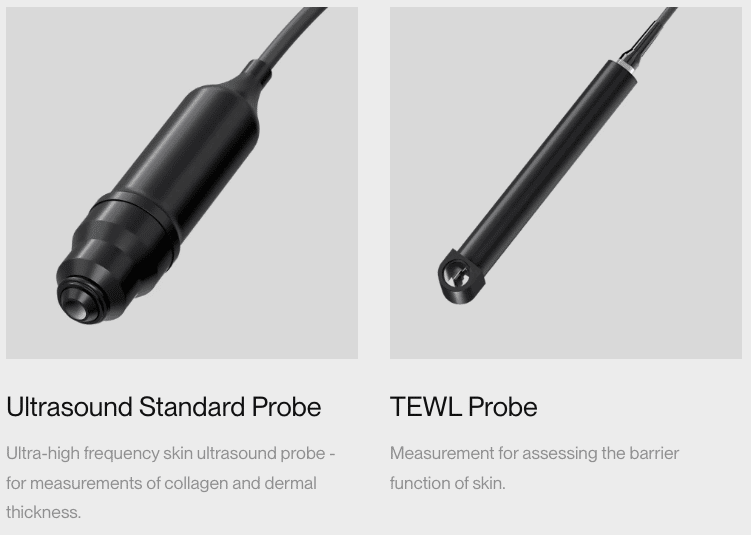

Principle: TEWL Diffusion gradient.
Range: 0 – 250 g/m²/h.
Resolution: 0.1 g/m²/h. Accuracy: 5%.
Probe: Two combined humidity/temperature sensors in 10 mm cylindrical diffusion chamber.
Environment check: RH and temperature.
Autostop: Stops when SD criteria is met.
Calibration: Probes with calibration certificate. Read-out of continuous real-time TEWL curve and sensor display.
Clinique Combo: Read-out of continuous real-time TEWL, Read-out of Retration time.
SkinLab Combo: Read-out of continuous real-time curve of elevation vs. neg. pressure.
Three elasticity parameters: Retraction time, Young’s modulus and ViscoElasticity.
Hydration
Principle: Conductance, single frequency.
Range: 0 – 9999 microSiemens.
Resolution: 1 microSiemens.
Accuracy: 5%.
Probe: Pin probe w. eight pins. Spring loaded trigger action.
Calibration: Optional calibration checker.
SkinLab Combo: Conductivity read-out 0 – 9999 FSiemens, 8 readings with average.
Clinique Combo: Read-out of Hydration score 0 – 99, 3 readings with average.
– Calibration service with certificate available. Specifications may change without further notice.

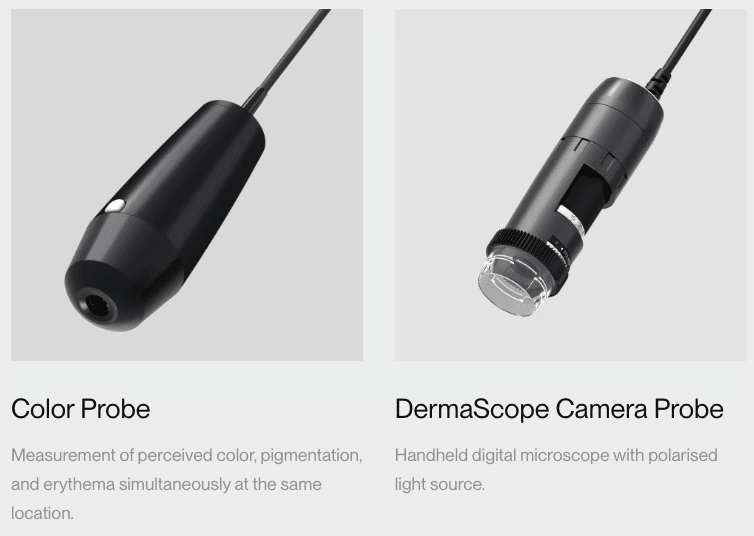

Skin Colour
Probe: Colour sensor w. 64 active elements, clear front for accurate positioning. Illumination by two angled white LED´s.
SkinLab Combo: Read-out of Erythema and Melanin (open ended index). CIELab colour values. Four readings with average.
Clinique Combo: Read-out of Erythema and Melanin index. Two readings with average.
Video Scope
Resolution: 1.3 megapixel.
Magnification: 10 – 50x (depends on screen size).
Light: Polarised/non-polarised setting.
Software: Dedicated software for saving/retrieving/comparing captured images.
Connection: USB connected videocamera.

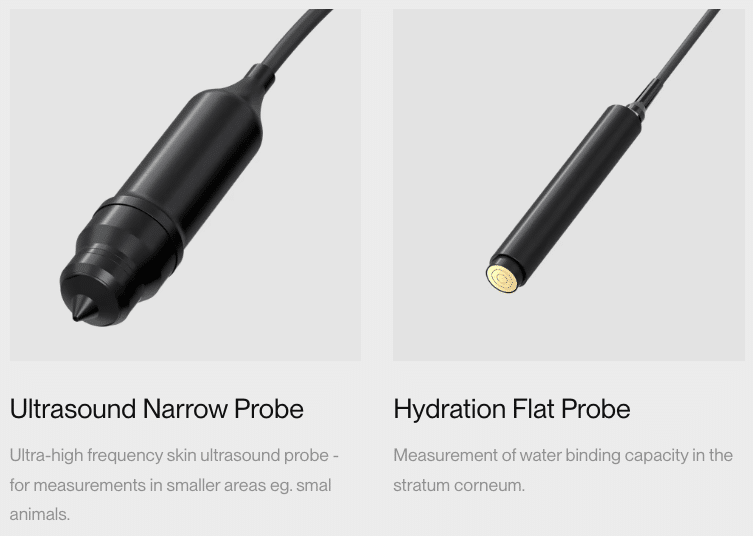

High Freq. Ultrasound
Frequency: 20 MHz, focused ultrasound.
Resolution: 60 x 200 micrometer (ax x lat).
Penetration: 3.4 mm.
Probe: Rotating transducer, scan length 17 mm, footprint 11 mm.
Read-out: Display of actual and stored measurements.
SkinLab Combo: Read-out of intensity score, skin thickness, low echogenic band, arbitrary distance.
Gain setting: +/- 10dB.
Clinique Combo: Read-out of intensity score.
Gain setting: 3 levels (temple, cheek, body).
SkinLab Combo: Read-out of step-by-step sequence status and two measurements with average.
Clinique Combo: Read-out of step-by-step sequence status and two measurements with average.

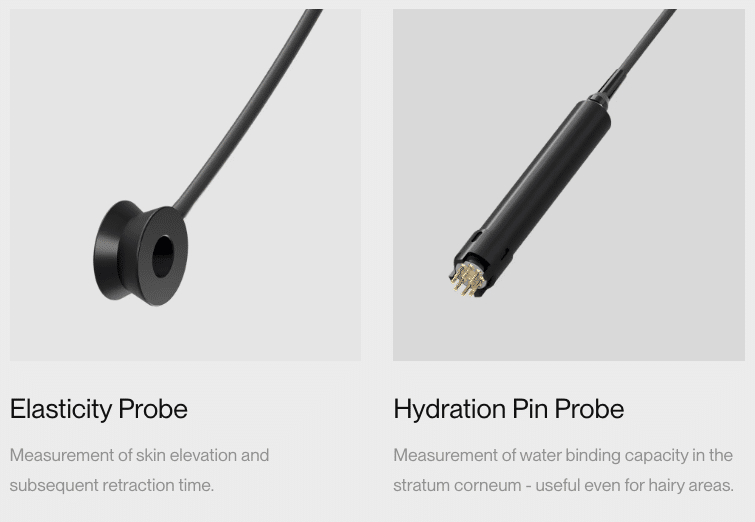

Elasticity
Principle: Stress/strain by suction.
Range: 0 – 4.5 mm elevation, adjustable neg. pressure setting 150, 400, 650 mbar.
Probe: Suction aperture: 10 mm. Ultra low weight for minimum skin bias. Adheres to the skin by double adhesive sticker.

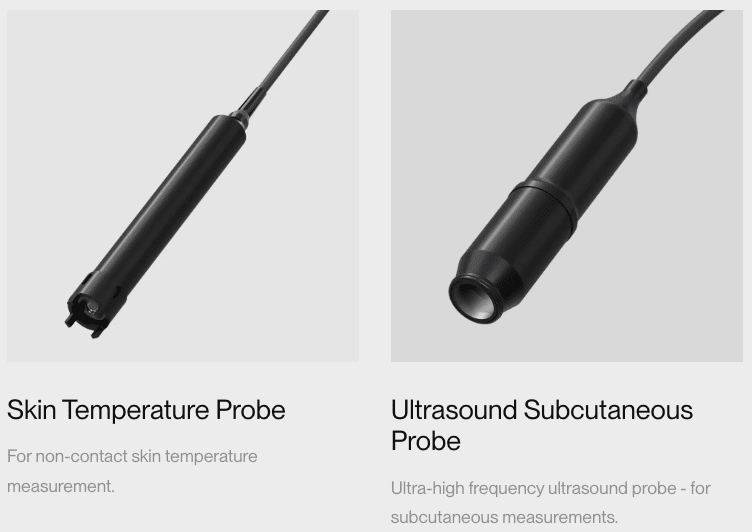

Skin Temperature
Measurement principle: Non-contact infrared detection.
Range: 10 – 50 deg. C.
Resolution: 0.1 unit.
Accuracy: +/- 0.1deg. C. Display of deg. Celsius or deg. Fahrenheit.

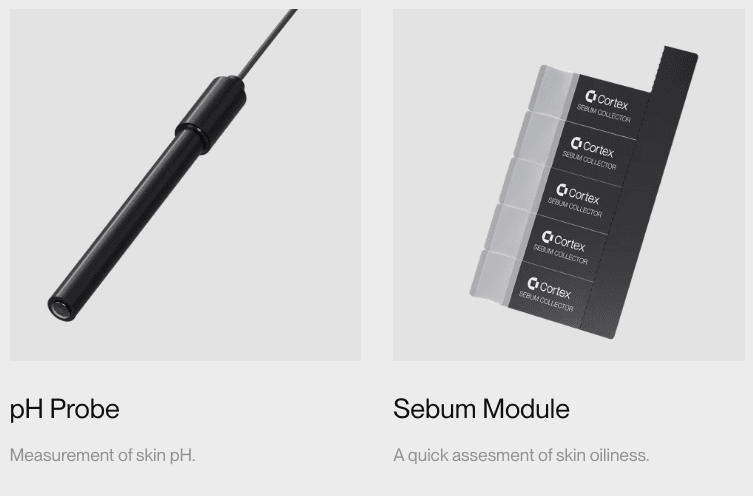

Skin pH
Probe type: Standard gel-filled surface type probe, fast response time.
Range: 1.00 – 11.00 pH.
Accuracy: 0.01 pH @ 25deg. C.
SkinLab Combo: Read-out of up to 8 measurements with average calculation.
Clinique Combo: Single value read-out.
SkinLab Combo: Read-out of up to 8 measurements with average calculation.
Clinique Combo: Single value read-out.
DermaLab® Combo
State-of-the-art skin analysis
CORTEX TECHNOLOGY”
