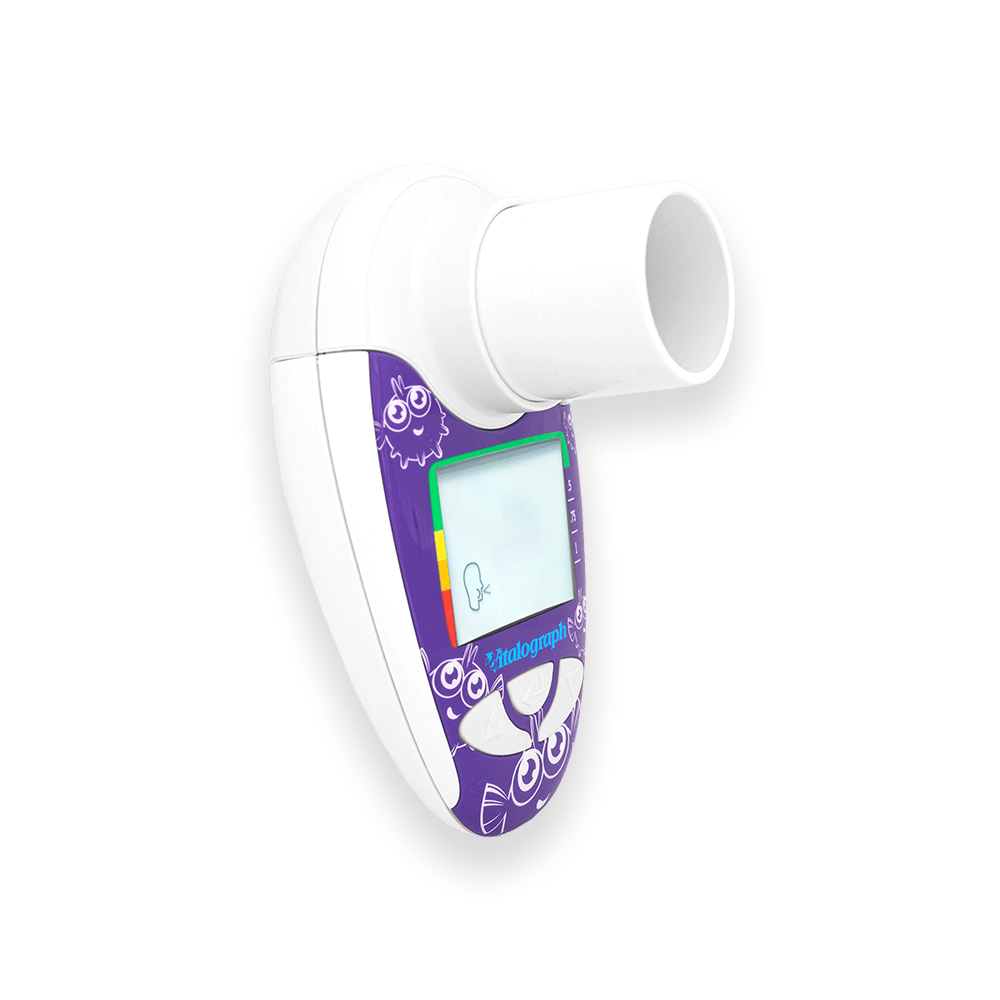

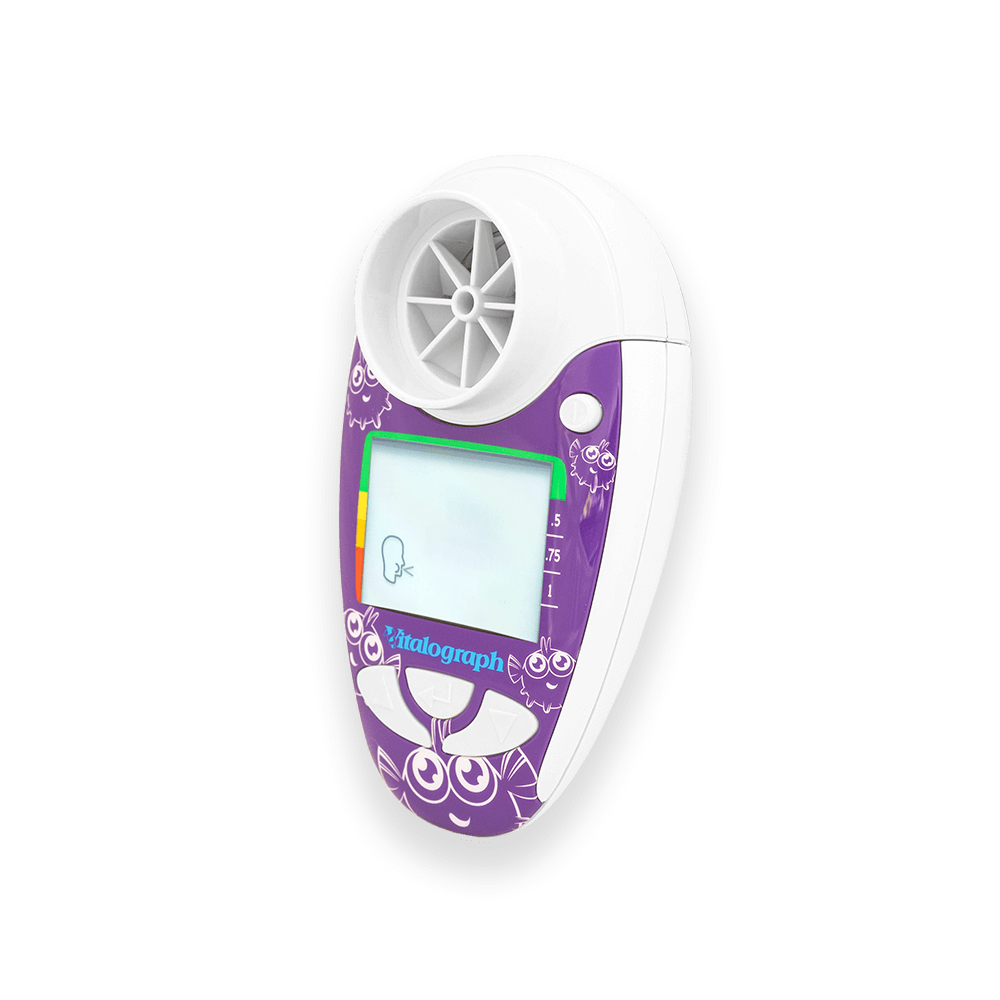

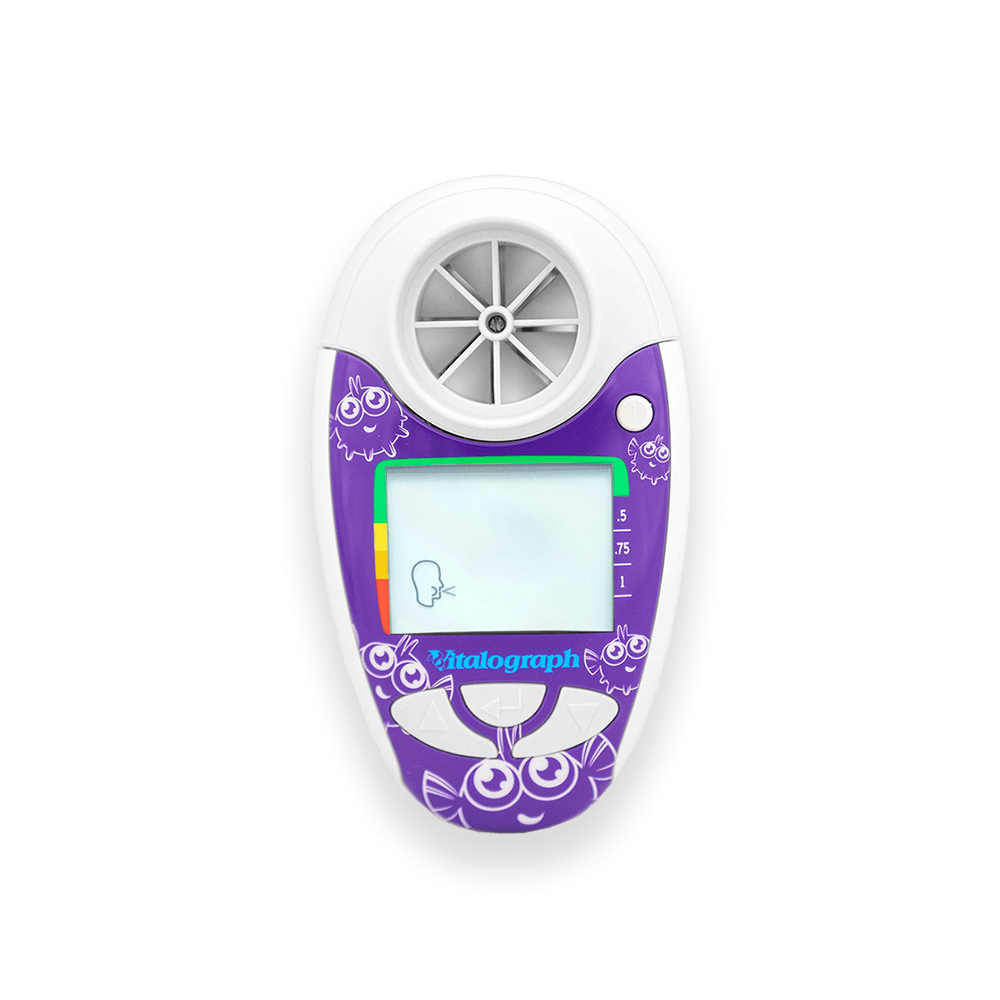

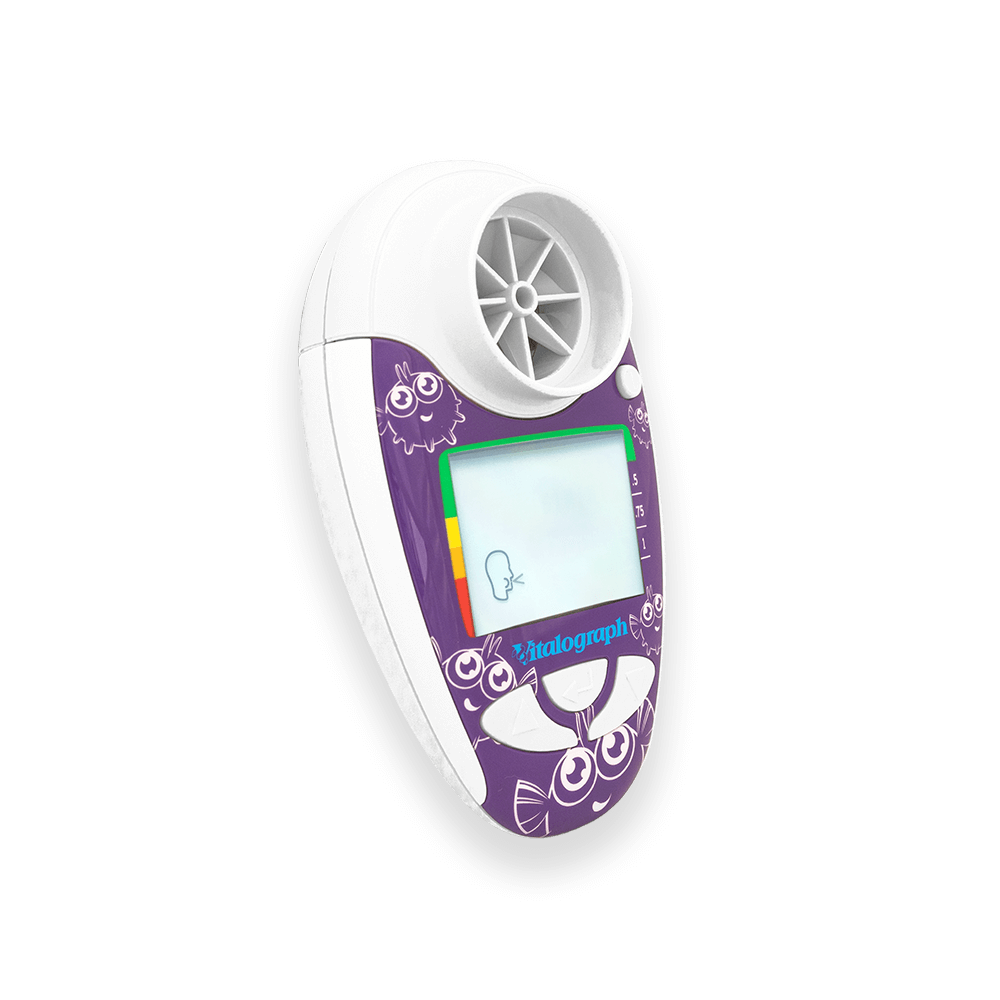

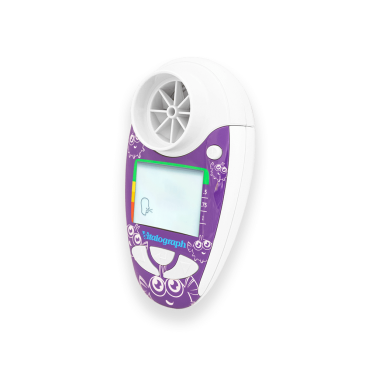

Vitalograph asma-1 Asthma Monitor, Child
Handheld device for remote Asthma patient monitoring in children or adults
- The Vitalograph asma-1™ Child is an accurate electronic respiratory monitor suitable for home use and for both children and adults. It offers greater accuracy than mechanical peak flow meters and eliminates the need for paper record cards.Ideal for monitoring at home, work, in clinical trials, in primary or secondary care.
- Measures FEV1, FEV0.5, FEV0.75 and PEF.
- Displays % of personal best FEV1.
- Electronic record – no need for record cards.
- Set unique ‘personal best’ zones for test subjects.
- Automatically stores best values in a test session.
- Quality of blow indicator.
- 600 test memory.

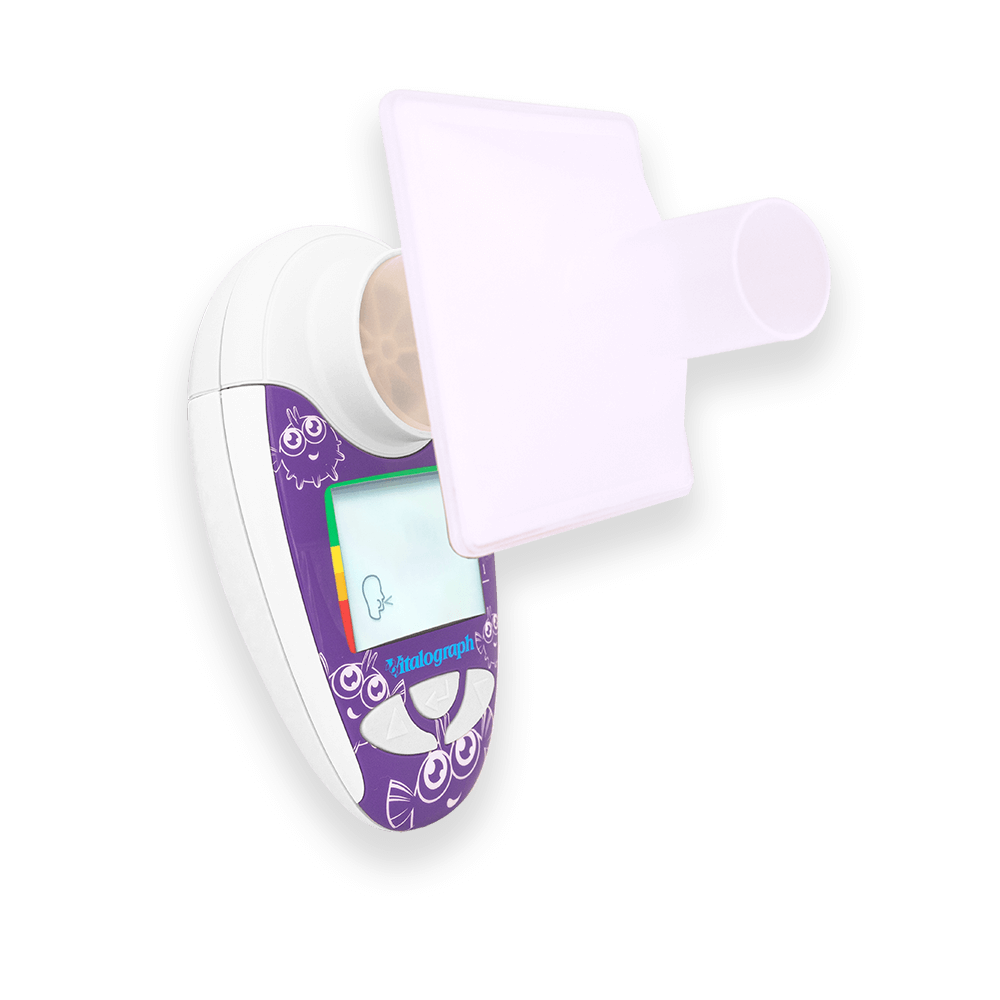

- Suitable for use in clinic with Bacterial Viral Filters (BVF™).
- Compliant with: ATS/ERS 2019 and ISO 23747 / 26782 / 13485
- Large, easy to read display.
One of our 4000 Series of respiratory monitors and screeners, the asma-1 comes with:
- Pouch
- Instructions for use
- 2 x AAA Batteries
- Plastic mouthpiece for single patient use
Product Code: 40065
| Product | Respiratory Monitor asma-1 Child |
|---|---|
| Model | 4000 |
| Dimensions | 109mm (length) x 63mm (width) x 42mm (height) |
| Flow Detection Principal | Stator rotor |
| Accuracy | Better than ± 3% (FEV1) |
| Back Pressure | Less than 0.15kPa/L/second @ 14L/s |
| Measurement Range | FEV1: 0 – 9.99 L BTPS |
| Maximum Test Duration | 6 seconds |
| Quality Check | Slow start of test (Vext>5%) or a cough detected in the first second |
| Power Supply | 3V (2 x 1.5V AAA batteries) |
| Expected Battery Life | 3 months of use at 3 tests per day |
| Performance Standards & Guidelines | ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009 |
| Auto Power Down Time | 2 minutes |
- 28501 Eco BVF (100)
- 28572 Eco BVF + Disposable Noseclips (80)
- 20933 2024 Eco-SafeTway Mouthpieces (50)
- 40167 Pouch Spare (x10)
- 40168 Plastic Mouthpiece 4000 series (20)
