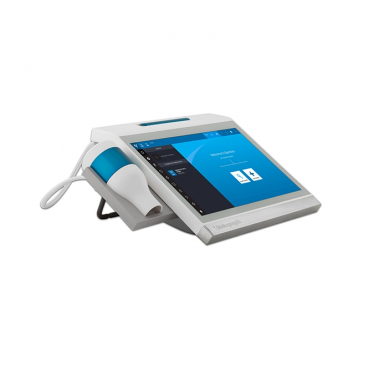

Vitalograph Compact with RMS
A multi-diagnostic clinic solution that facilitates accurate and efficient point-of-care assessment of respiratory health.
Overview
Respiratory Diagnostics Workstation.
The answer to multidisciplinary point-of-care respiratory diagnostics.
The Compact has integrated spirometry testing and optional respiratory muscle strength testing in one efficient solution. It also supports data collation from other companion devices, such as the BT12 ECG.
This enables a greater focus on the patient and their healthcare needs as multiple tests can be conducted in a straightforward manner. Easily transportable, the Compact includes full Microsoft Windows PC functionality, and Spirotrac 6 software for highly efficient testing and patient management. It includes multiple connectivity options for a streamlined workflow.
Consolidation of diagnostics for efficient point-of-care assessment
| Diagnostic Categories | Description | Testing Types |
|---|---|---|
| Spirometry | Assess respiratory volume and flow. | VC FVC Bronchodilator responsiveness testing |
| Respiratory Muscle Strength* | Evaluate diaphragmatic, intercostal, and abdominal muscle strength. | MIP – Maximal Inspiratory Pressure MEP – Maximal Expiratory Pressure SNIP – Sniff Nasal Inspiratory Pressure PCF – Peak Cough Flow |
| Electrocardiogram* | Measure rhythm and electrical activity of heart. | 12 Lead ECG with University of Glasgow Interpretation Algorithm |
*Optional hardware required
This device comes with a Free 5-Year Warranty including unlimited technical support when registered within 30-days of purchase.
Vitalograph provides free certified training for all of its respiratory diagnostic solutions. Register here.
Be free to help your patients perform Spirometry
The Compact has an integrated V-Core™ flowhead, allowing you to focus on helping your patients achieve their best spirometry test, confident that you are capturing accurate and reproducible results.
Capabilities
- Consolidated patient data
- Collates test results from different types of cardio-respiratory diagnostic assessments.
- Consolidates all relevant patient information in a single device.
- Mulitple connectivity options
- Secure and seamless integration with your EMR through Vitalograph Connect.
- Customizable PDF reports.
- Networkable.
- Bluetooth and wireless options available.
- Superior respiratory diagnostics
- Integrated V-Core spirometry flowhead for accurate and reliable testing.
- High resolution of 0.1 cm H2O for MIP, MEP, & SNIP.
- Glasgow interpretation algorithm for ECG assessment.
- Fast evaluation of results with %Predicted comparison, LLN and Z scores.
- Automatic interpretation of results.
- Hygienically Efficient:
- Low running costs and environmentally friendly: no costly disposable sensors, turbines, or flow tubes.
- Single-use Vitalograph Bacterial Viral Filters (BVF™) with validated cross-contamination efficiency >99.999%, protect device, patient, and operator.
- Designed for everyday clinical use:
- Large touch-screen with a user-friendly intuitive interface and full Windows PC functionality.
- Easily transportable.
| Model Number | 6600 |
|---|---|
| Device classification: | Class II (USA) / IIa (EU) medical device |
| QA/GMP standards: | EN ISO 13485, FDA 21 CFR 820, CMDR SOR/98-282 & Japan’s PMD Act |
| Volume Accuracy | ±2.5% or ±0.05L |
| RMS Test Types | MIP, MEP, SNIP, PCF |
| Pressure accuracy RMS: | +/- 3% |
| Pressure resolution RMS: | 1 cm H2O |
| Dimensions: | 296 x 261 x 108 mm |
| Weight: | 3 Kg net |
| Power supply: | 19V DC Power Supply |
| Communications: | USB x 6, Ethernet x 2, DVI Video Display Interface |
| Operating system: | Microsoft Windows 10 Embedded |
| Screen: | 12.1” LCD 1280*800 pixel with capacitive touch screen |
| Performance standards the Vitalograph Compact meets or exceeds: | ISO 23747:2015, ISO 26782 2009, ATS/ERS 2019 Technical Standards |
- 28572 Eco BVF and Disposable Nose Clip
- 28551 2820 Eco BVF + Silicone Bite-On Mouthpiece + Nose Clips
- 36020 2040 Precision Syringe 3-L
- 67181 COMPACT 19V Power Supply
- 77934 Flowhead Complete
- 77652 MIP MEP Flowheads
- 77651 MIP MEP Connection Tube
- 77653 Silicone One-way Valve (Pack of 2)
- 77973 SNIP Nasal Probe Adaptor
- 67242 Compact Stylus
- 67179 Compact Wifi Adaptor
