Spacelabs EVO Holter Monitor
Rechargeable recorder for capturing up to 48 hours of high quality three channel ECG data

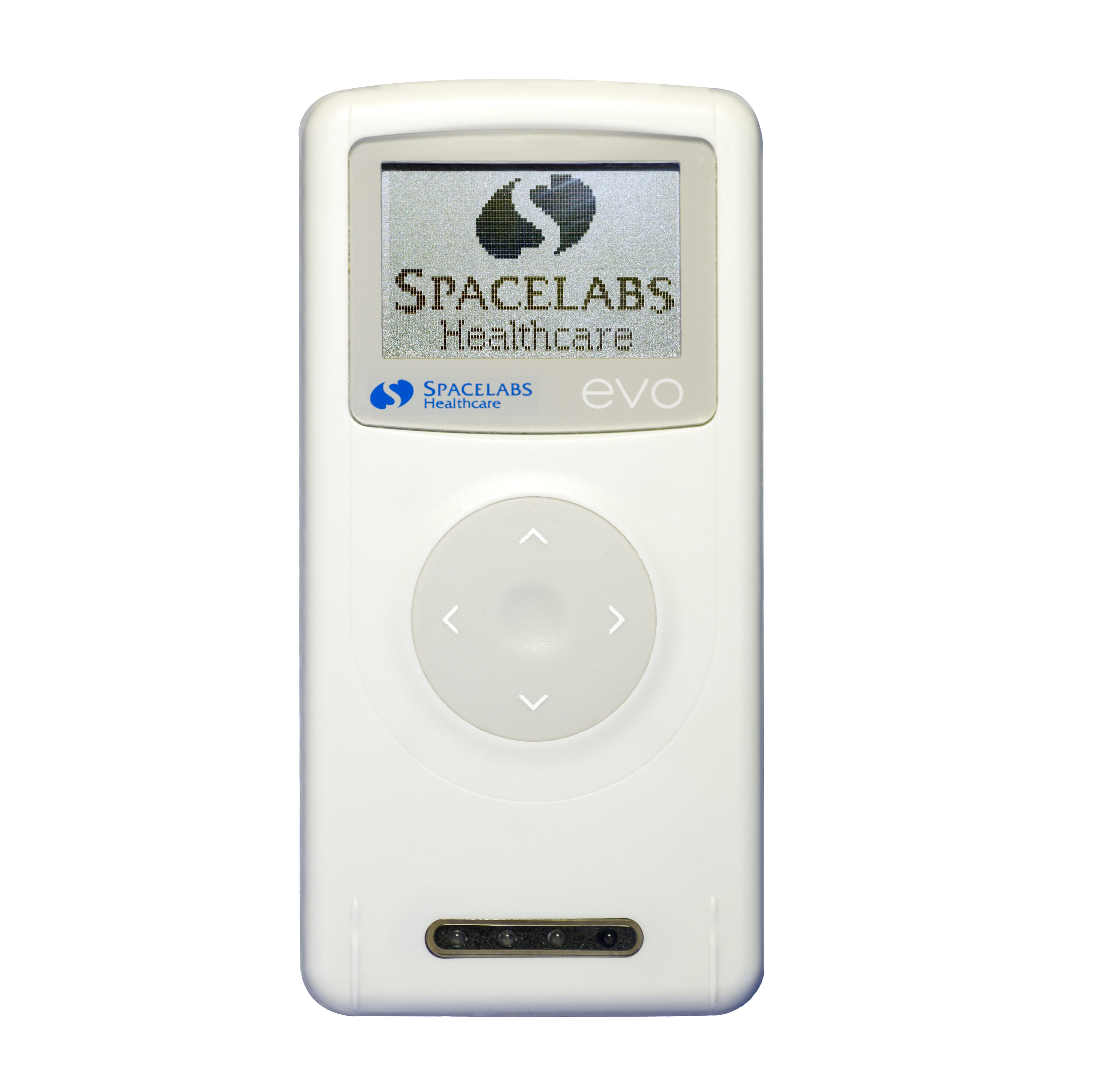

As a robust, self-contained recorder, Evo is designed to capture up to 48 hours of high quality three channel ECG data, quickly download the raw data recording, recharge and be available for the next patient within five minutes. The onboard screen provides a signal quality check and information to the technician to ensure good quality recordings.
- Small and lightweight, at just 2½ oz (72g) Evo is easy to wear under clothing or on a belt clip, for patient comfort and compliance
- Has dynamic energy sourceTM and wireless charging, eliminate the cost of disposable batteries
- Evo is a fully sealed recorder making cleaning quick and simple
- Fixed internal memory ensures reliability of data recording. No data transfer cards are required.

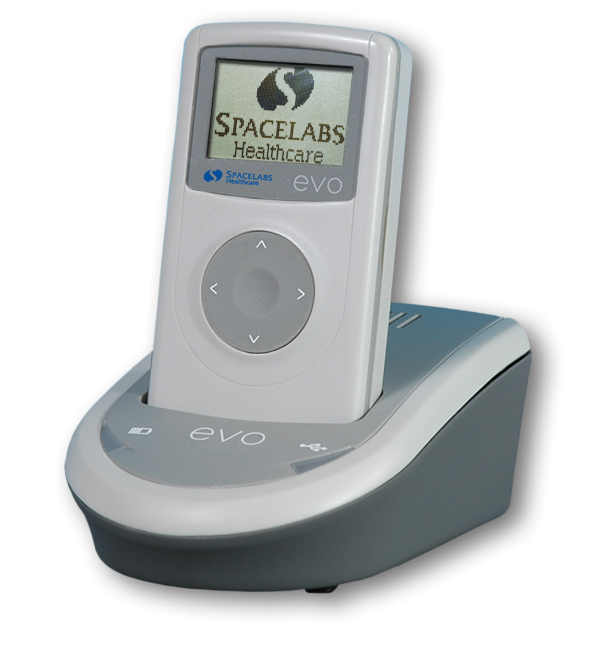

- Fast ECG download and recharge via the USB docking station: Work smart Evo fully charges during data download so the recorder is always ready for the next patient.

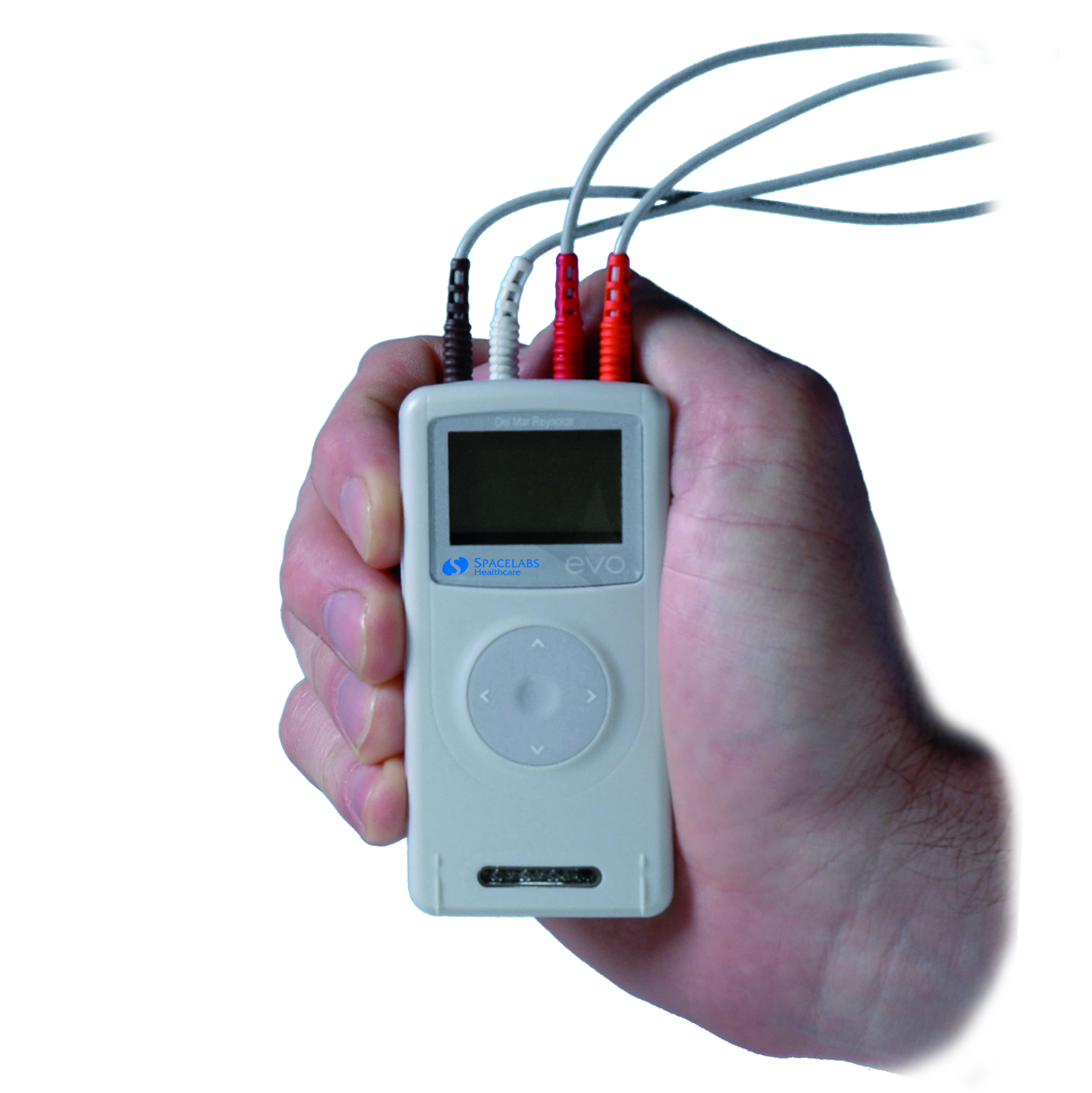

- Individual lead wires for easy removal, reducing the need for lead replacement and lowering cost of operation.
- Pacing detection comes as standard and all recordings can be analyzed with Spacelabs Healthcare Holter systems.
There is no need to change batteries, plug in cables or replace memory cards. The Evo recorder is fully charged and ready for the next patient within five minutes.
- Place recorder in dock
- Program patient details via the Sentinel data management system user interface
- Hook up the patient and verify ECG quality
- Start recording
- Upon return, remove from patient and drop the recorder into the dock for immediate download and recharge
Product: Spacelabs EVO Digital Holter Recorder
Part No: 50-0035
- ECG Input
- Cable types 3 channel 4 electrodes, with detachable lead wires
- Sampling rate 2048 samples per second per channel
- Data Storage
- Media type 128 Mbyte non-volatile internal memory
- Data types full disclosure ECG, with pacing and patient event markers, recording time and date, patient ID
- Pacemaker Pulse Detection
- Sensitivity 2 mV nominal, in all channels
- Physical Characteristics
- Dimensions 92 x 45 x 15mm (3.62 x 1.77 x 0.59in)
- Weight recorder body 72g (2.5oz) including Dynamic Energy Source
- User Interface
- Clock and calendar
- Ancillary features shows Dynamic Energy Source status before the recording starts
- Hook-up display real time display of each channel, in high resolution and pacing annotation
- Docking Station
- Compatibility USB 2.0 compatible
- 50-0045 - EVO Docking Station USB Connector and cable.
- 254252-529
- 25452-535 EVO Electrode snap lead set, 14" Red/White/Orange/Brown
- 25452-525 EVO Electrode snap lead set 14" Orange/Brown/Red/7" white
